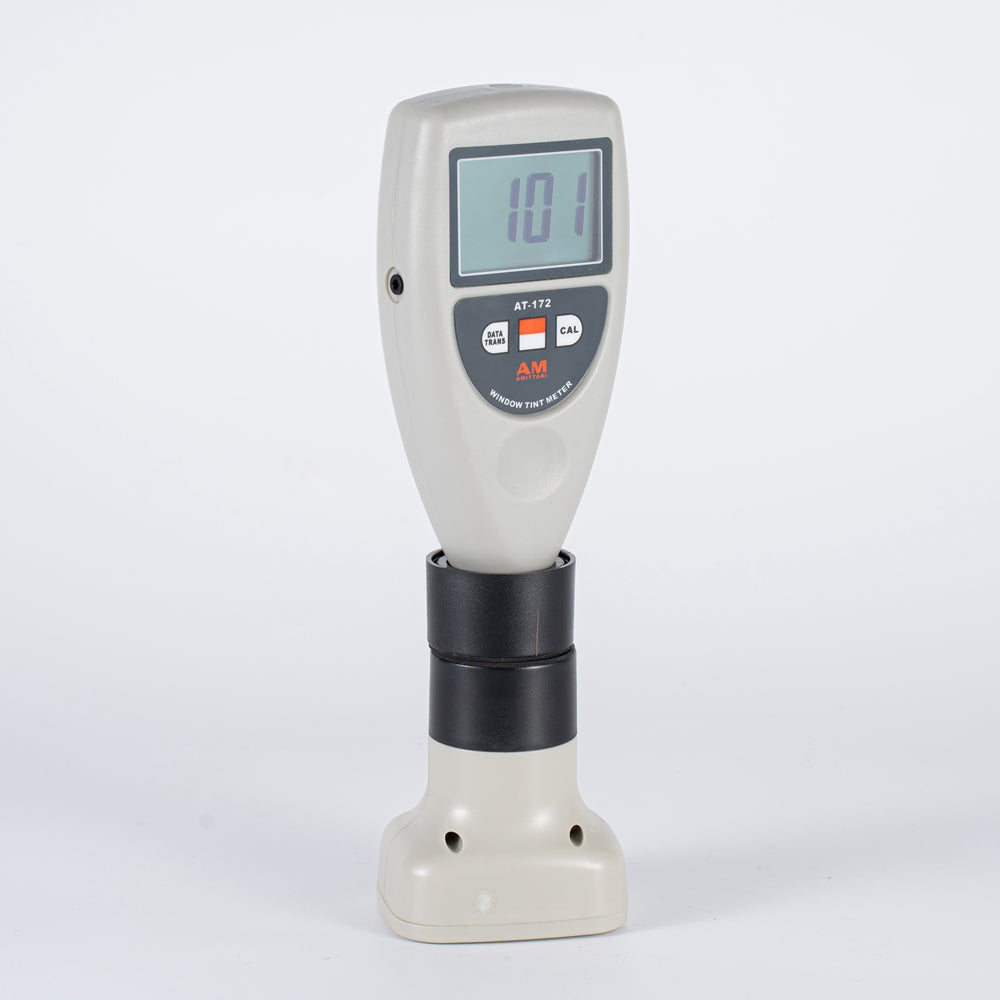

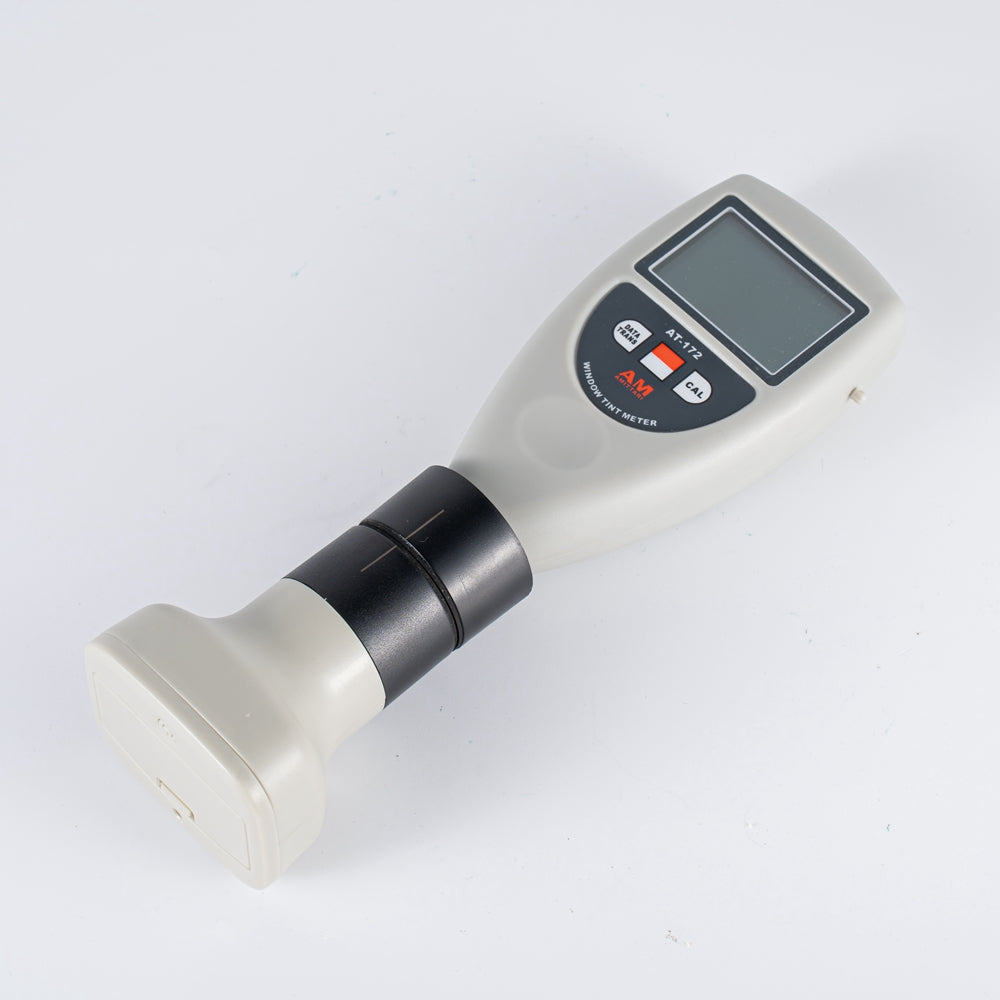

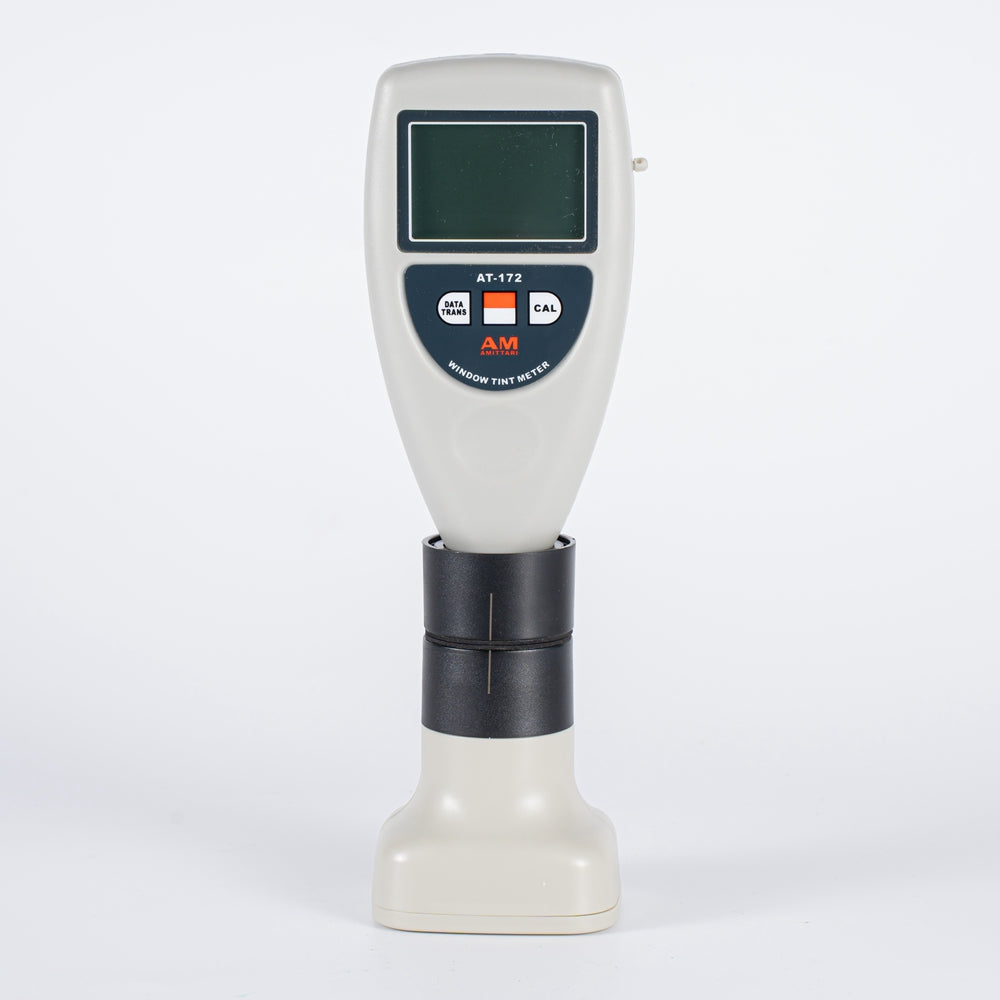

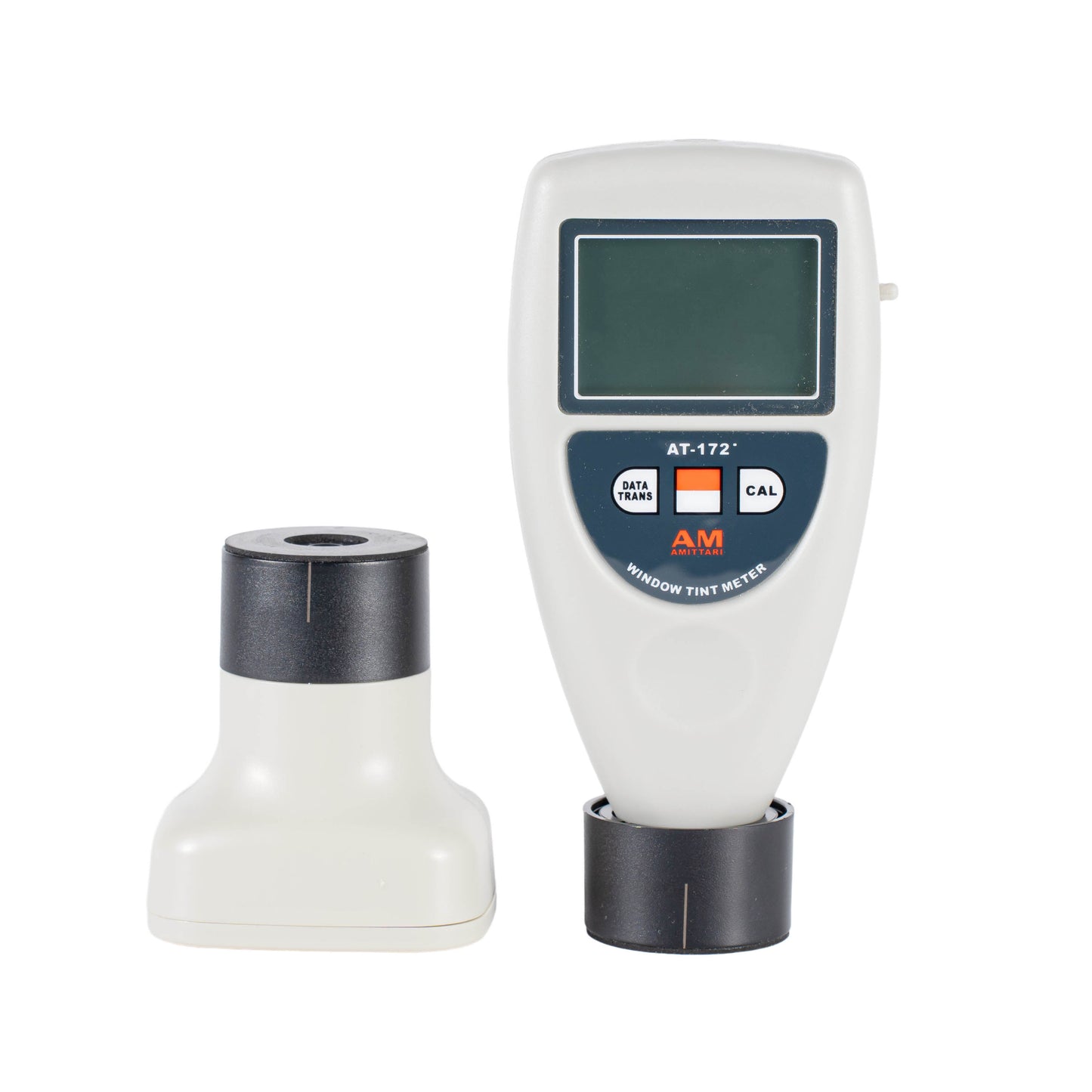

Window Tint Meter AT-172

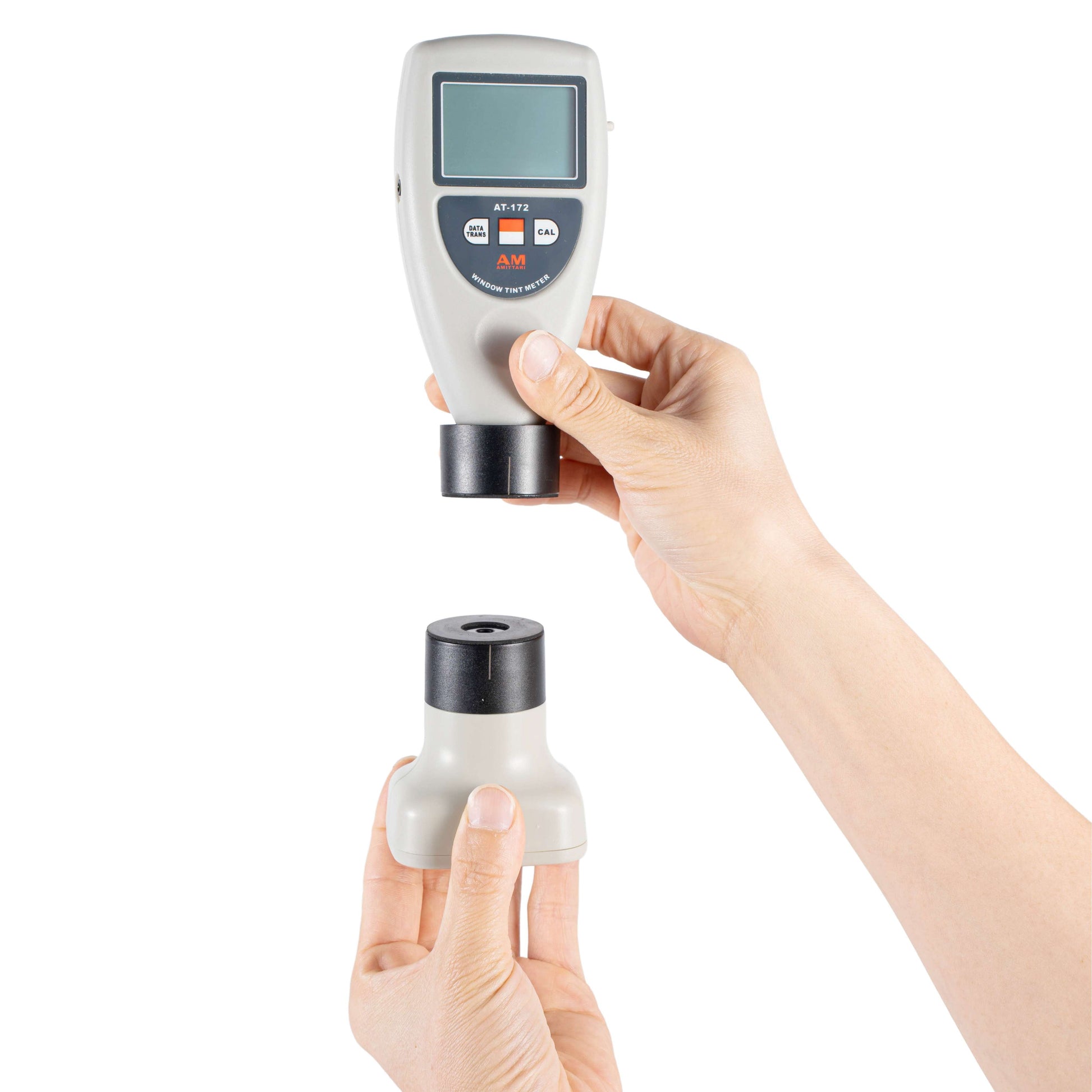

• TOMLIN Window Tint Meter (Model AT-172)

  Description:
  The TOMLIN Window Tint Meter AT-172 is a wireless device designed for measuring visible light transmittance through transparent materials. Its portable design, compliance with international standards, and high precision make it an ideal tool for professionals in automotive, aerospace, and glass manufacturing industries.

  Applications:

  • Automotive Manufacturing: Tint and glass quality testing for car windows.
  • Aerospace Industry: Measures transparency and light transmittance of aircraft windows.
  • Glass and Plastic Sheets: Ensures product quality during production.

  Key Features:

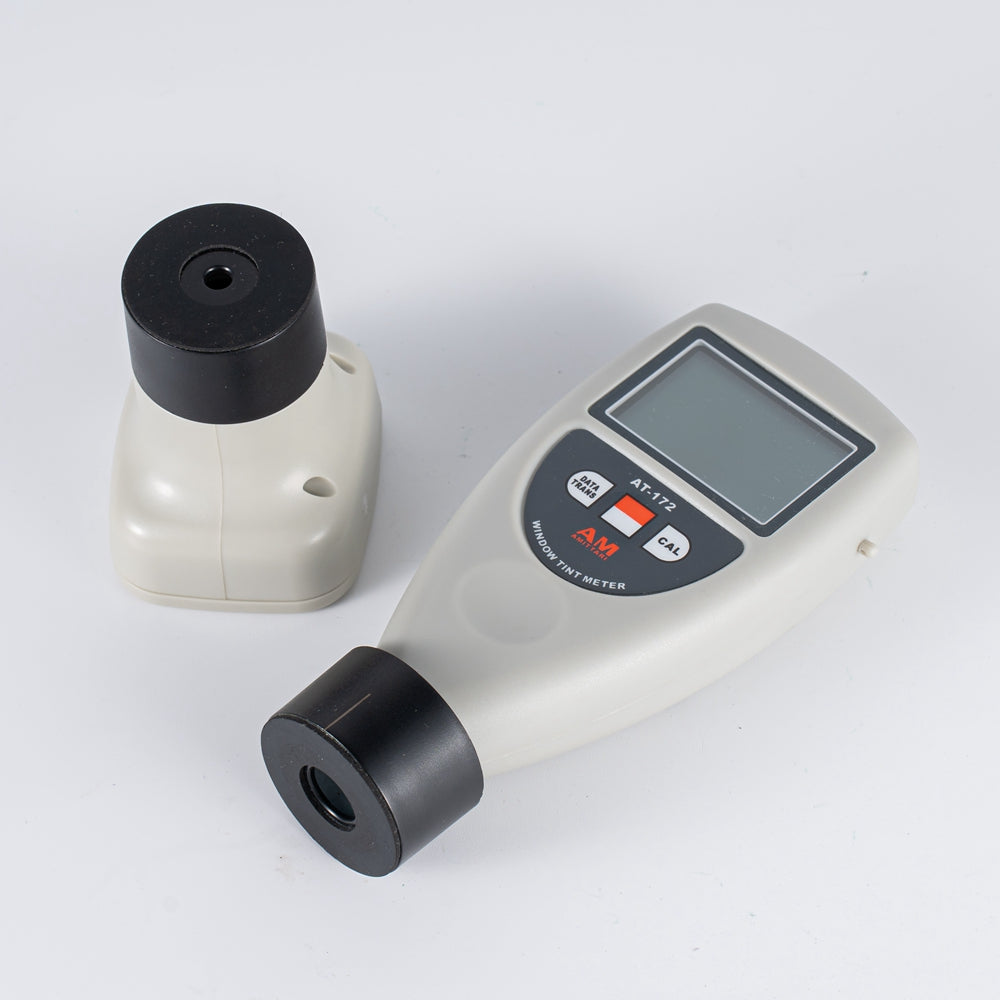

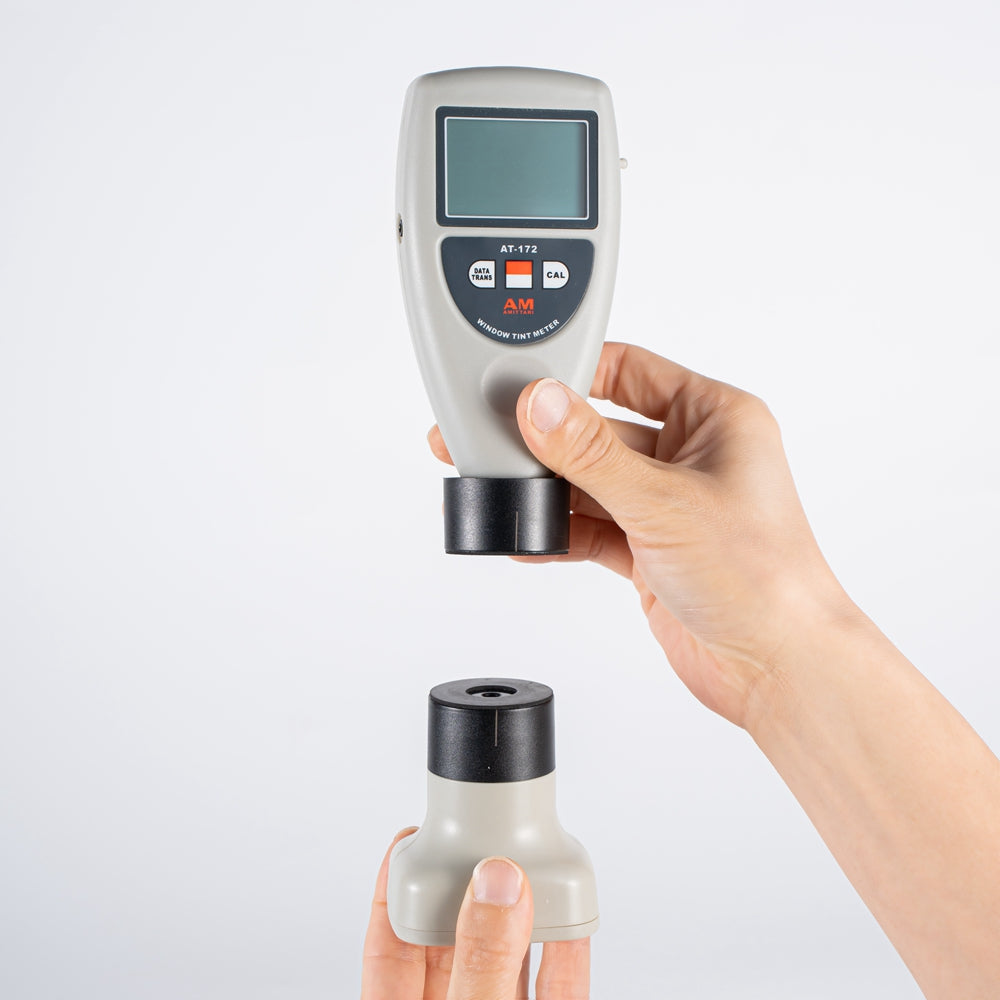

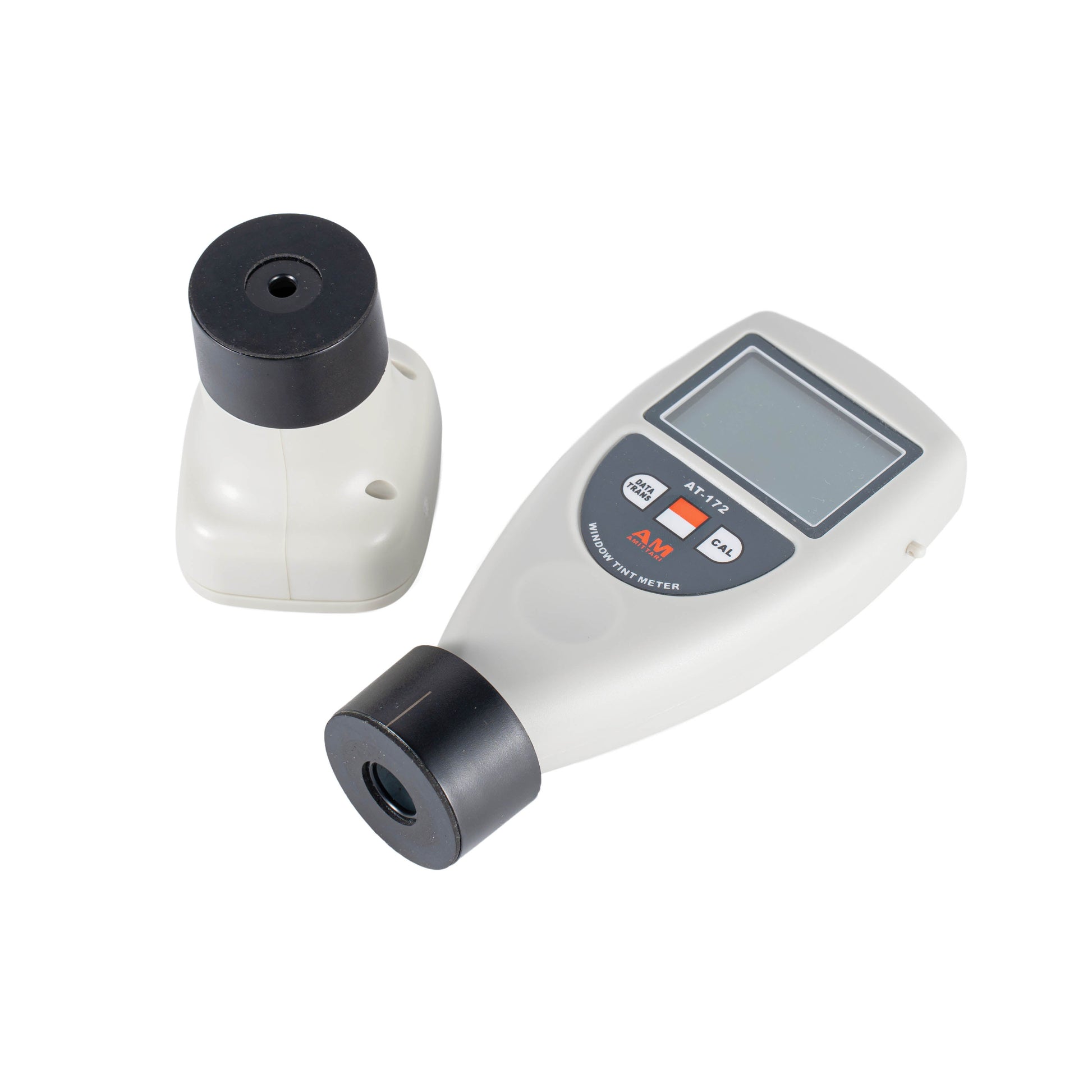

  1. Wireless Sensor: Provides flexibility and convenience during measurement.
  2. Visible Light Measurement: Ensures precise light transmittance analysis.

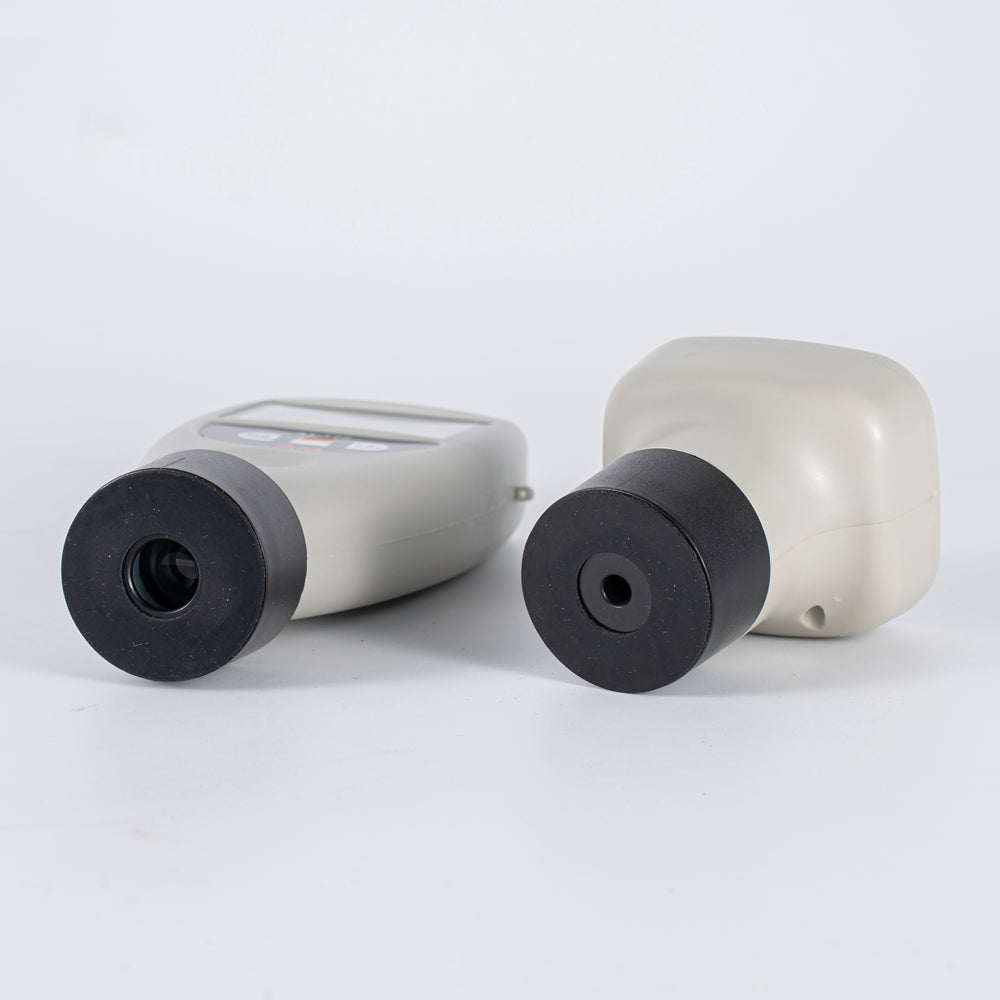

  3. Rotatable Sensor: Simplifies use with materials of varying shapes and sizes.
  4. Backlight Display: Enhances visibility in low-light environments.
  5. Buzzer Sound Reminder: Alerts during measurement operations.
  6. Manual/Auto Power Off: Reduces battery consumption.
  7. Low Battery Indicator: Indicates when batteries need replacement.
  8. Computer Connectivity: Allows data transfer for analysis and reporting.

  Specifications

  Parameter	Details
  Measurement Range	0~100%
  Resolution	0.1
  Light Source	LED
  Sample Thickness	Less than 18 mm (0.7")
  Accuracy	±2%
  Wavelength	550 nm
  Operating Temperature	050°C (32122°F)
  Operating Humidity	<90%

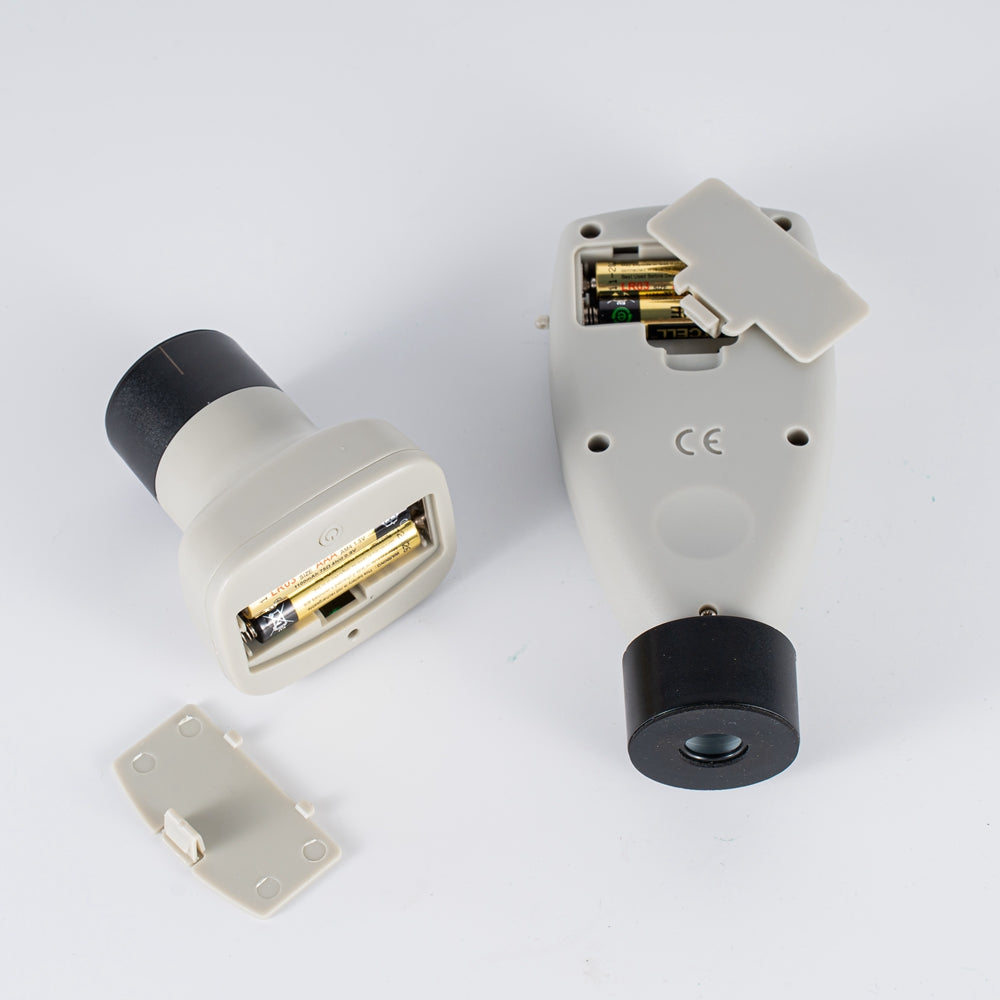

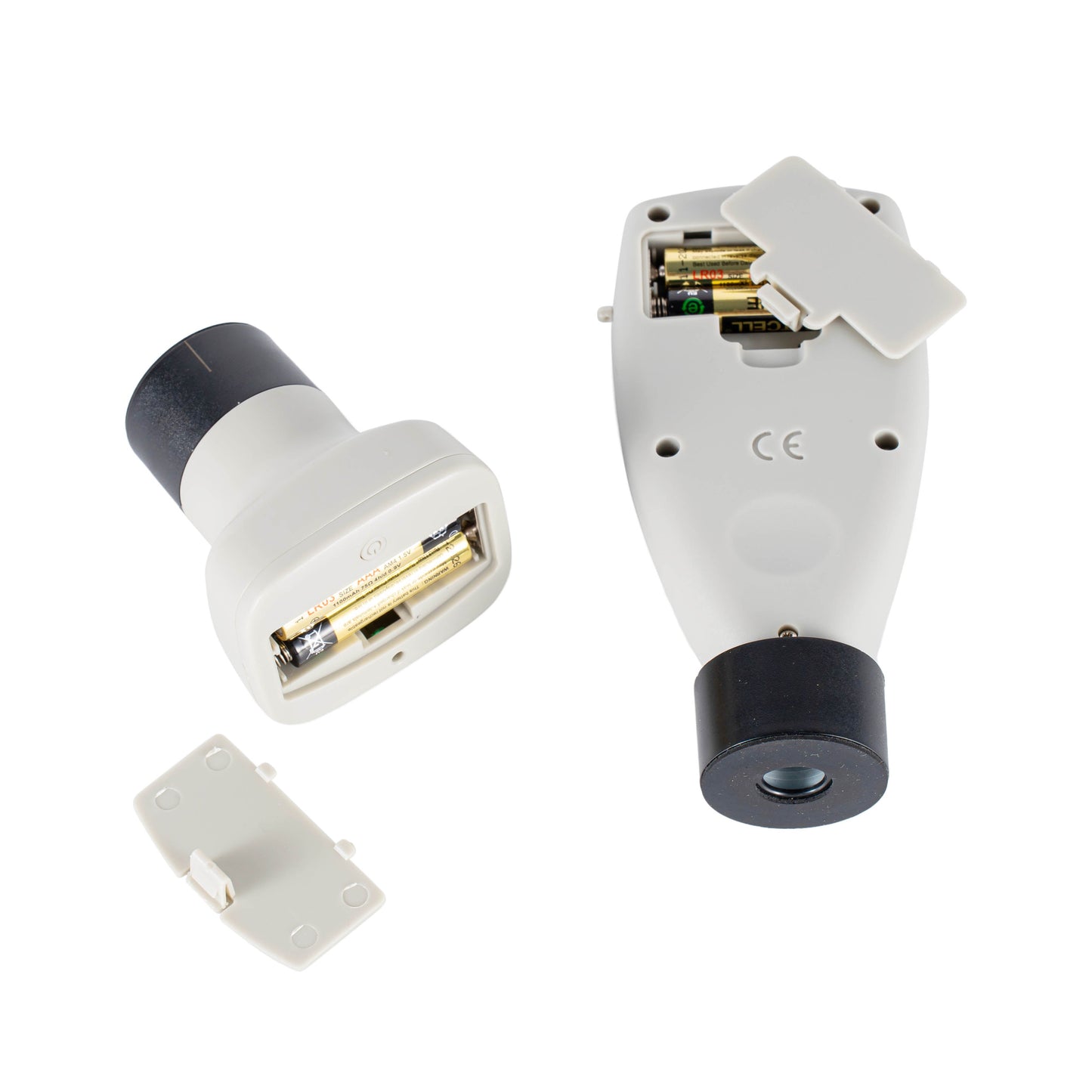

  Power Supply	2 × 1.5V AAA batteries
  Size (Main Unit)	141 × 65 × 38 mm
  Weight (Without Battery)	290 g (10.23 oz)

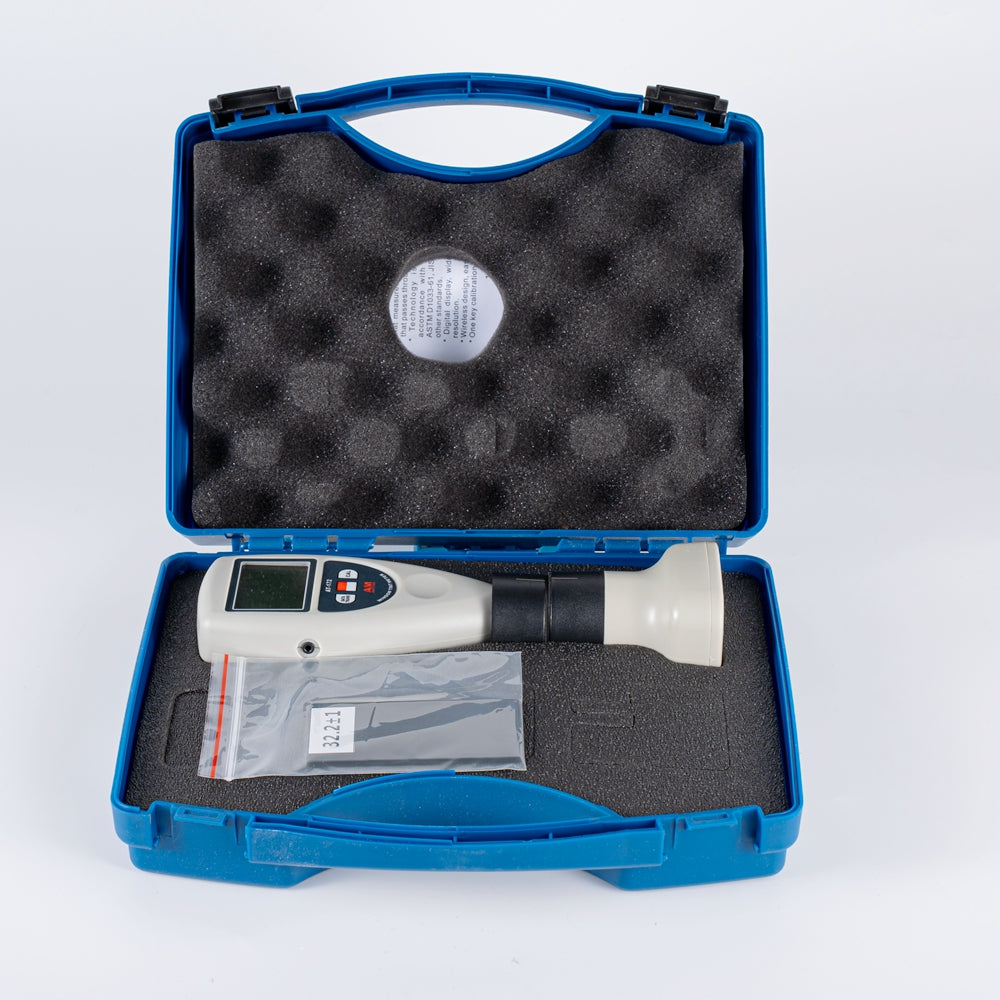

  Standard Accessories:

  • Main Unit
  • Testing Block

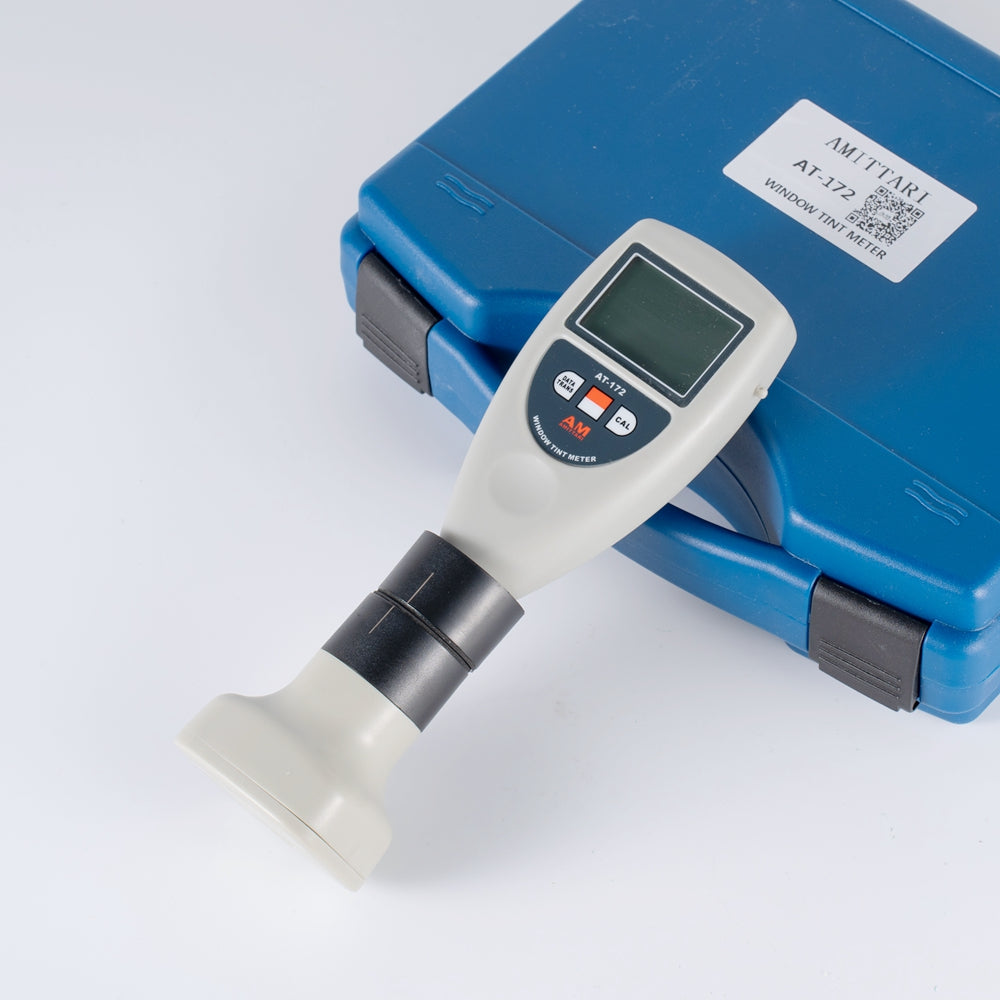

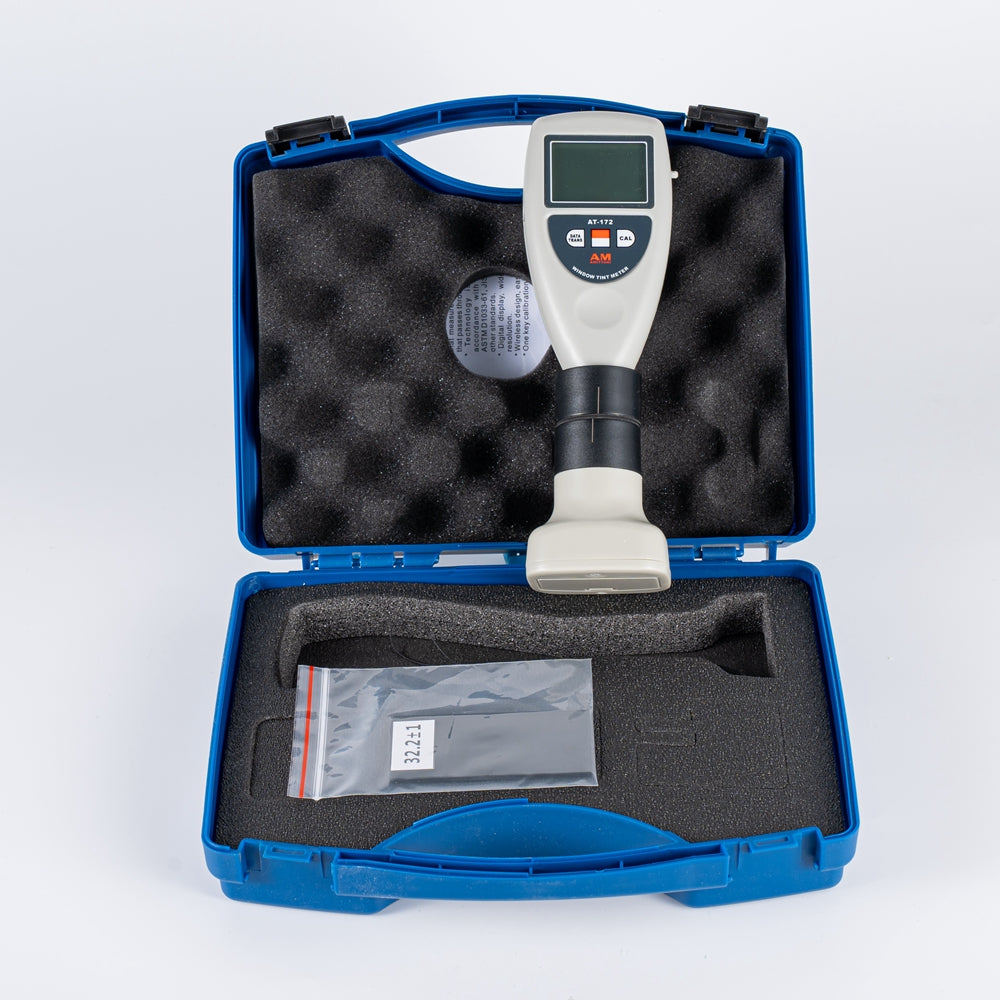

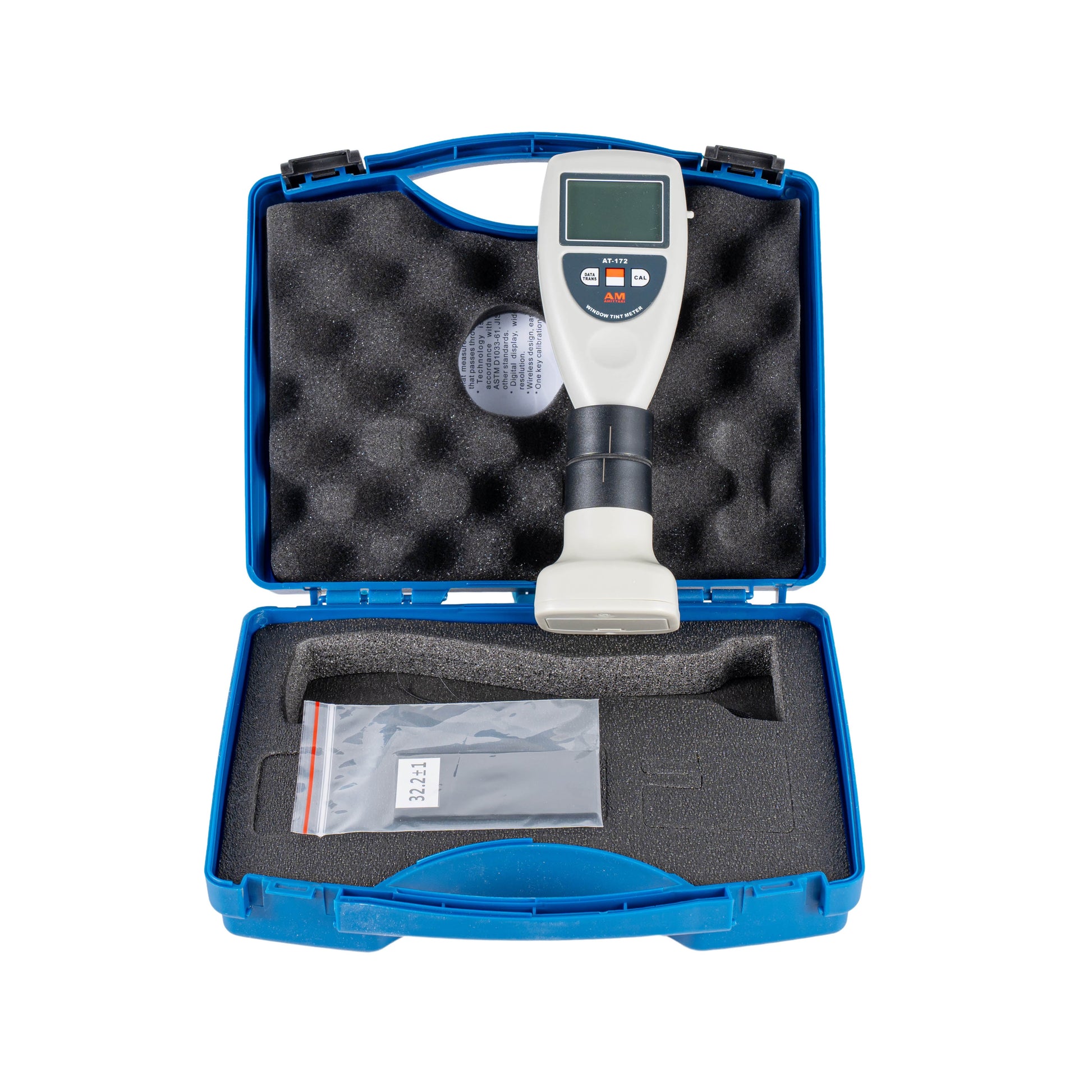

  • Carrying Case
  • Operation Manual

  Optional Accessories:

  • USB Cable & Software
  • Bluetooth Adapter & Software

  Alternative Names:

  • Wireless Window Tint Tester
  • Visible Light Transmittance Meter
  • Glass Transparency Tester

Downloads

PDF Specification Sheet - Download Here
