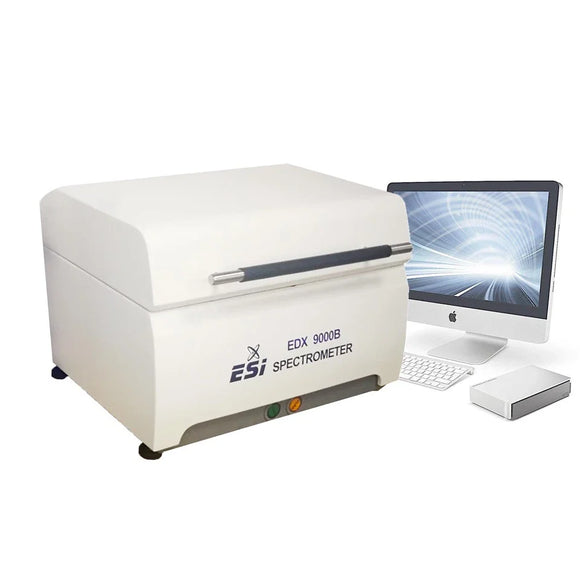

Benchtop XRF Spectrometer EDX9000B

ESI Energy Dispersive X-Ray Fluorescence Spectrometer (EDX9000B)

Manufacturer: ESI

Working Condition

• Work temperature: 15-30
• Relative humidity: 70%
• Power supply: AC 220±5V (110±5V optional)

Technical Performance and Specifications

• Elements analyzed: Sodium (Na) to Uranium (U)
• Element content range: 2ppm to 99.99%
• Measurement time: 5-300s
• Application: Minerals, ash, slag, limestone, and coal
• Measurement stability: < 0.1% (Element Content >95%)
• Long-term working stability: 0.2% (total intensity of fluorescence)
• Energy resolution: 135±5eV
• Suitable temperature range: 15 to 30
• Independent matrix effect correction model
• Calibration modes: FP (Fundamental parameter) and EC (Empirical coefficient)

Main Hardware Configuration of EDX9000B

Simplified Spectrometer Structure

• Silicon Drift Detector + DMCA analyzer: Converts X-rays into electrical pulses; processes signals and sends them to the microprocessor for analysis.
• Electrical Peltier cooling detector
• DMCA: Digital multi-channel analyzer
• X-Ray Tube:
  • Lifetime: > 20,000 working hours
  • 50 watts beryllium window with Tungsten Target X-ray tube (Silver, Rhodium target optional)
• HV supplier:
  • Provides 0-50kV power to the X-ray tube
  • Long term stability: <0.01%
• High Resolution CCD Camera: Observing sample
• Collimator:
  • Eight collimators, software-switchable for different applications
• Filter:
  • Five different filters, software-switchable
• Free Combinations between Collimators and Filters: 40 combinations available

Software of EDX9000B

• Observes samples with the camera
• Simultaneous analysis for 80 elements within 1 to 3 minutes
• Qualitative, half-quantitative, and quantitative analysis
• Automatic initialization and calibration
• FP and EC calibration modes for various applications
• Standard and customized test report options

XRF Element Software

• Rapid and accurate component analysis of samples
• Multiple mathematical analysis and calculation models for different materials and samples
• Ability to create multiple working curves with independent testing conditions
• Customizable tube voltage and current settings for targeted element content analysis
• Automatic qualitative analysis and reference spectra comparison for convenient material testing

Configuration of Samples

• Standard Samples: One alloy standard or mining standard, Pure gold sample

Other Main Accessories

• High voltage and X-ray tube filament cable
• USB cable for camera
• X-ray indicator lamp
• Instrument main data cable
• Protective shield
• Test membrane and sample cups
• Cover of the instrument
• Vacuum pump, pump pipe, and connector
• LED indicator

Necessary Technical Documents Enclosed

• Operation Manual
• A List of the Parts
• Inspection Report
• CE certificate
