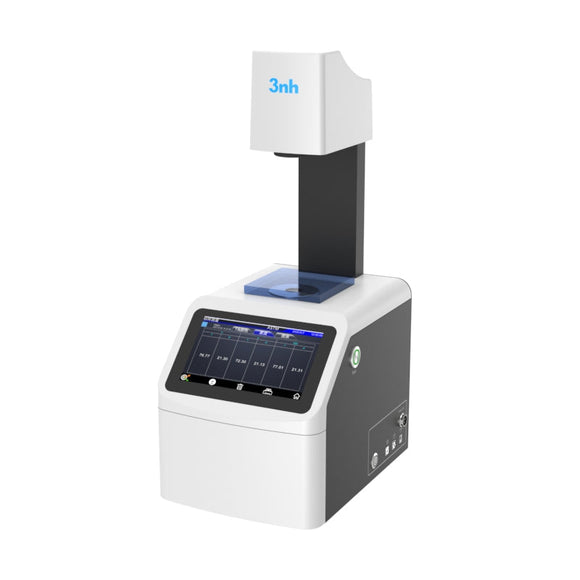

Haze Meter YH1000

YH1000 Haze Meter

Introduction:

The YH1000 haze meter is designed to accurately measure haze and transmittance using the ASTM D1003 non-compensation method. It features an open sample bin for both vertical and horizontal testing, making it suitable for a wide range of sample types. The YH1000 utilizes a PD array detector, adhering to the CIE V(?)2 degree visual response for high precision and repeatability.

Technical Advantage

• Conforms to ASTM Standards: Complies with ASTM D1003/1044, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, and JIS K7136 standards, meeting various user requirements.

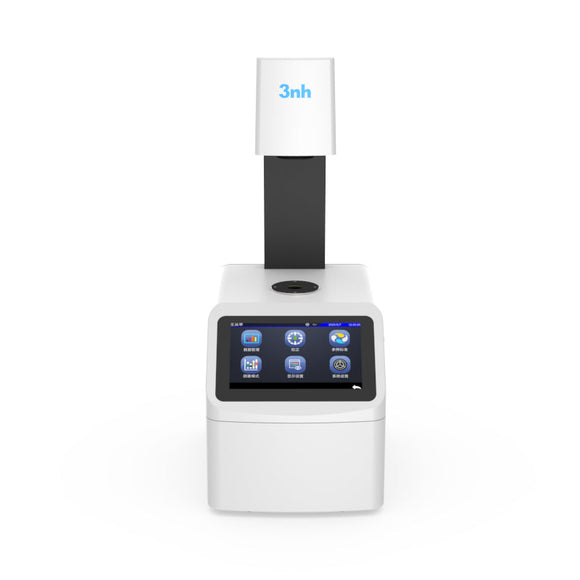

• Easy Operation and Accurate Measurement: Equipped with a large touch screen for ease of use, with USB data output for laboratory integration.

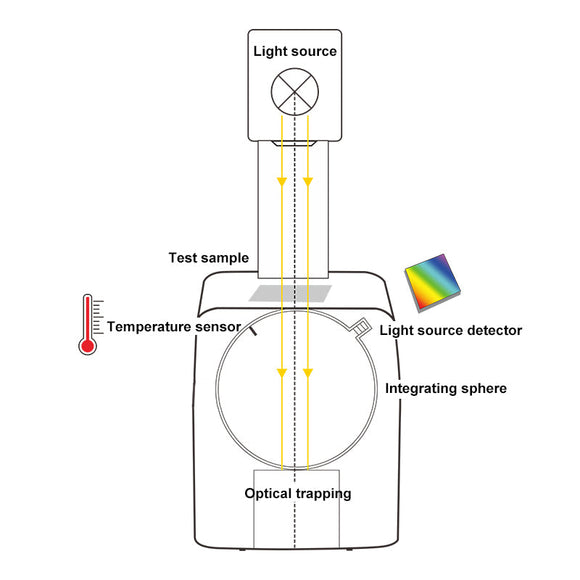

• Dynamic Measurement: Independent light source detector and temperature sensor ensure reliable test data by monitoring environmental changes.

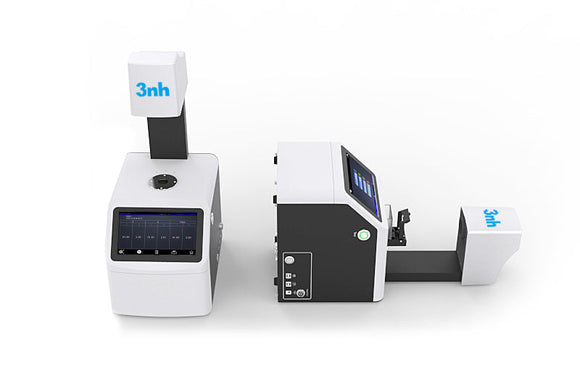

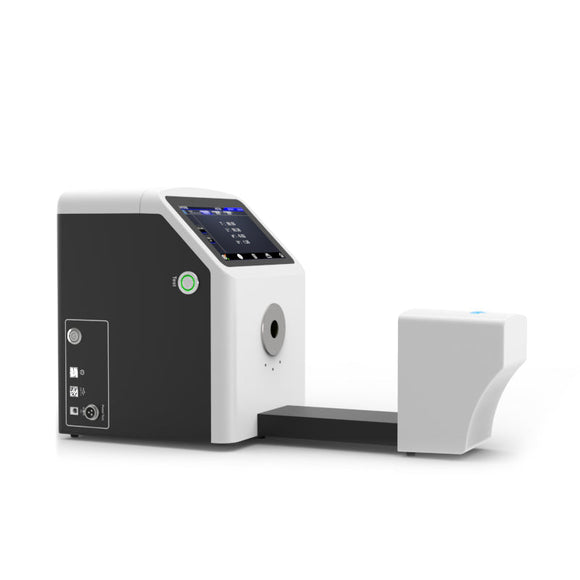

• Versatile Sample Testing: Open measurement area allows for testing in multiple orientations, accommodating a variety of samples.
• Quality Control Software: Offers robust software for haze and transmittance analysis, facilitating data management and report generation for quality monitoring.

Application

The YH1000 haze meter is widely used in industries such as glass processing, plastic processing, film processing, screen processing, packaging, and liquid pharmaceutical analysis for measuring transmittance and haze.

Technical Specification

• Product Model: YH1000 Haze Meter
• Optical Geometry: Transmittance: 0/D (Parallel light illumination, diffuse viewing)
• Characteristic: Suitable for transmittance and haze detection in various industries.
• Integrating Sphere Size: ?154mm
• Light Source: 400nm to 700nm, combined LED light
• Sensor: PD array detector, meets CIE V(?)2 degree visual response
• Measurement Range: 0~100%

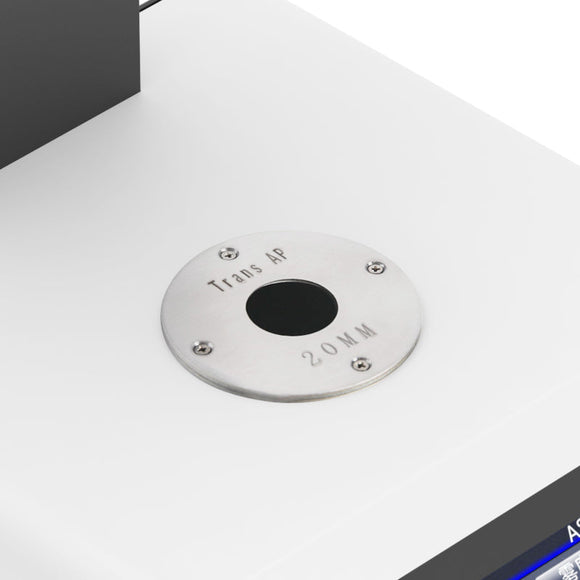

• Measuring Aperture: ?20mm/?15mm/?8mm/?4mm (Select a single aperture)
• Sample Size: Thickness <170mm
• Other Colorimetric Index: Haze (ASTM D1003/1044), Transmittance T (ASTM)
• Observer Angle: 2°
• Illuminants: D65, A, C
• Displayed Data: PASS/FAIL Result
• Measuring Time: Approximately 1.5s
• Resolution: 0.1 unit
• Repeatability: ?20mm, within 0.1
• Inter-instrument Error: ?20mm, within 0.4
• Dimensions: L*W*H = 290x211x511mm
• Weight: Approximately 7.6kg
• Power: AC 24V, 3A power adapter
• Illuminant Life Span: 5 years, more than 3 million measurements
• Display: 7-inch TFT color LCD, capacitive touch screen
• Data Port: USB, print serial port
• Data Storage: Standard 1000 pcs, sample 10,000 pcs
• Languages: Simplified Chinese, Traditional Chinese, English
• Operating Environment: 0~40°C (32~104°F)
• Storage Environment: -20~50°C (-4~122°F)
• Standard Accessories: Power adapter, user guide, quality management software (download from official website), USB cable, 0% calibration box, measuring aperture.
• Optional Accessories: Micro-printer, test fixture, standard haze sheet, foot switch
• Note: Specifications are subject to change without notice.
