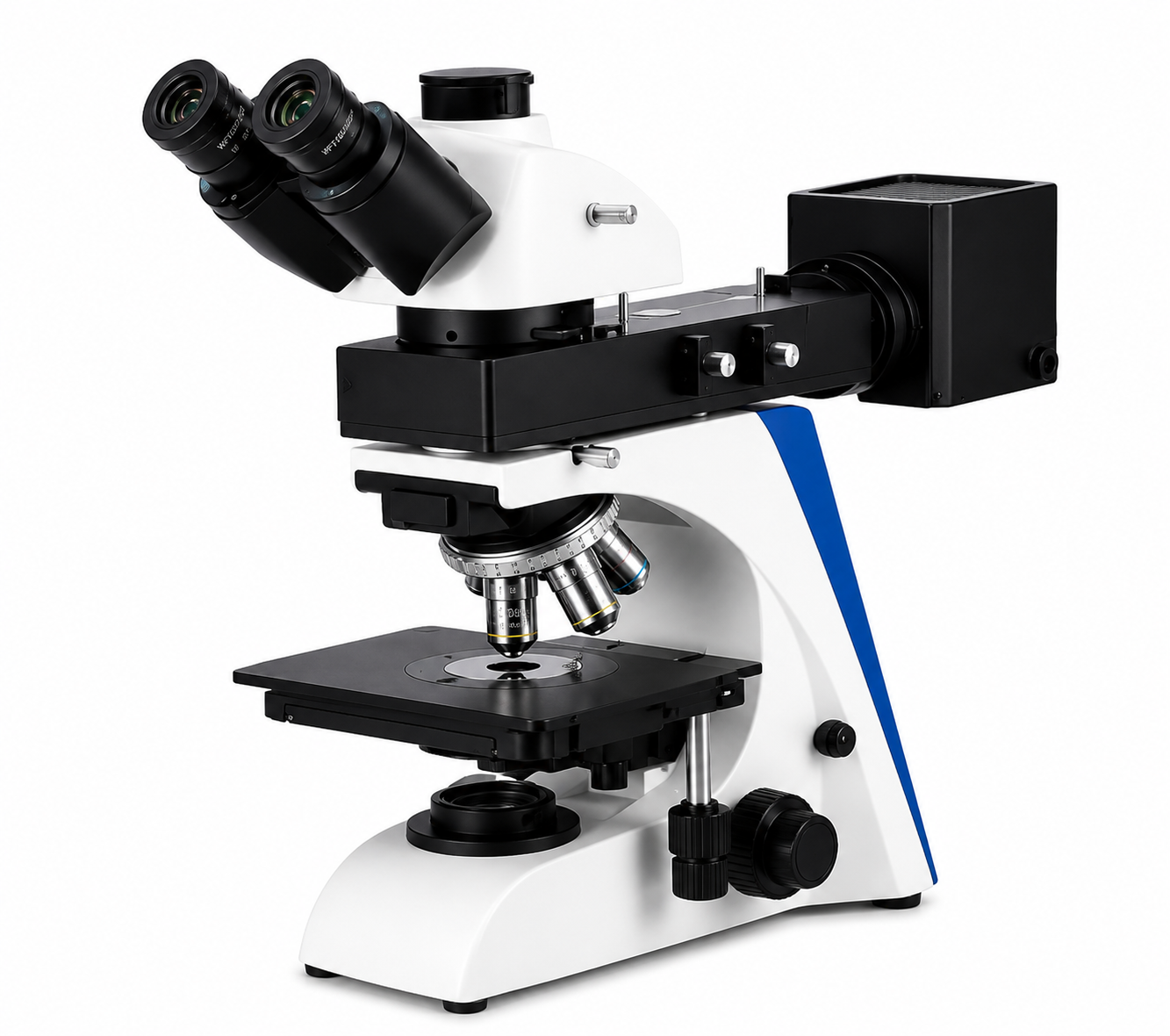

Upright Metallurgical Microscope – UMS-370 Series
Upright Metallurgical Microscope – UMS-370 Series
Couldn't load pickup availability
Description
The Sinowon UMS-370 Series Upright Metallurgical Microscopes are designed for professional materials analysis, metallography, quality control and failure analysis applications. The series combines high-performance infinity-corrected optics with advanced illumination systems to provide clear and accurate inspection of metallic and engineered materials.
The modular UMS-370 platform is available in multiple configurations ranging from standard reflected light observation through to advanced bright field, dark field and transmitted light analysis systems. This allows laboratories, manufacturers and research facilities to select the most suitable microscope for their inspection requirements while maintaining a common platform.
The UMS-370 Series is widely used for metallographic analysis, weld inspection, coatings evaluation, heat treatment verification, aerospace materials testing, automotive quality control and failure investigations. Oversized 22mm field-of-view eyepieces, long working distance objectives and a large mechanical stage provide comfortable operation and flexibility when inspecting a wide range of sample sizes.
Features
- Professional upright metallurgical microscope platform
- Infinity-corrected optical system
- Available in reflected light, bright field, dark field and transmitted light configurations
- Oversized 22mm field-of-view eyepieces
- Trinocular head for camera integration
- Polarizer and analyzer included
- Long working distance metallurgical objectives
- Large mechanical stage for sample positioning
- Precision coaxial coarse and fine focusing
- Suitable for digital imaging and image analysis software
- Compatible with camera adaptors and optional objectives
- Designed for laboratory, research and production environments
Applications
- Metallography
- Heat treatment verification
- Surface engineering
- Coatings inspection
- Failure analysis
- Aerospace materials testing
- Automotive quality control
- Welding inspection
- Manufacturing quality assurance
- Research laboratories
- Universities and technical institutions
- Materials science
Variant Comparison
| Model | Configuration | Dark Field | Transmitted Light | Best For |
|---|---|---|---|---|
| UMS-370 | Reflected Light | No | No | General metallography |
| UMS-370D | Reflected Light | Yes | No | Surface defect analysis |
| UMS-370T | Reflected + Transmitted | No | Yes | Metals and non-metallic materials |
| UMS-370TD | Reflected + Transmitted | Yes | Yes | Advanced research and failure analysis |
Help Me Choose
| If you need to... | Recommended Model |
|---|---|
| General metallurgical inspection | UMS-370 |
| Bright and dark field observation | UMS-370D |
| Inspect both metallic and non-metallic materials | UMS-370T |
| Full reflected, transmitted and dark field capability | UMS-370TD |
Specifications
| Specification | Details |
|---|---|
| Product Type | Upright Metallurgical Microscope |
| Optical System | Infinity Corrected Metallurgical Optical System |
| Viewing Head | Trinocular Head |
| Head Inclination | 30° |
| Interpupillary Distance | 48mm – 76mm |
| Eyepieces | WF10X / 22mm Wide Field |
| Mechanical Stage | Up to 200mm × 150mm |
| Stage Travel | 77mm × 52mm |
| Focusing System | Coaxial Coarse & Fine Focus |
| Fine Focus Resolution | 2μm |
| Polarizing Unit | Included |
| Camera Compatibility | C-Mount Adapters Available |
| Illumination | LED or Halogen Depending on Model |
| Power Supply | 100–240V Universal Input |
| Packing Dimensions | 520 × 470 × 430mm |
| Gross Weight | 16kg |
| Net Weight | 12kg |
Standard Objectives
UMS-370 / UMS-370T
- LMPlan FL 5X Semi-Apochromatic Objective
- LMPlan FL 10X Semi-Apochromatic Objective
- LMPlan FL 20X Semi-Apochromatic Objective
- LMPlan FL 50X Semi-Apochromatic Objective
UMS-370D / UMS-370TD
- M PLAN 5X Bright & Dark Field Objective
- M PLAN 10X Bright & Dark Field Objective
- M PLAN 20X Bright & Dark Field Objective
- M PLAN 50X Bright & Dark Field Objective
Optional Accessories
Objectives
- LMPlan FL 80X Objective
- LMPlan FL 100X Dry Objective
Camera Adaptors
- 0.5X C-Mount Adapter
- 0.75X C-Mount Adapter
- 1X C-Mount Adapter
Filters
- Blue Filter
- Green Filter
- Amber Filter
- Grey Filter
Digital Imaging
- USB Digital Camera
- DSLR Camera Adapter
Software
- Metavision Image Analysis Software
Industries Used In
- Aerospace
- Automotive
- Foundries
- Heat Treatment Facilities
- Metal Processing
- Welding Inspection
- Surface Engineering
- Universities
- Research Laboratories
- Quality Control Laboratories
Downloads
Alternative Names
-
- Metallurgical Microscope
- Upright Metallurgical Microscope
- Materials Analysis Microscope
- Metallography Microscope
- Metallurgical Inspection Microscope
- Metallurgical Laboratory Microscope
- Failure Analysis Microscope
- Bright & Dark Field Metallurgical Microscope
- Industrial Metallurgical Microscope
- Quality Control Metallurgical Microscope
