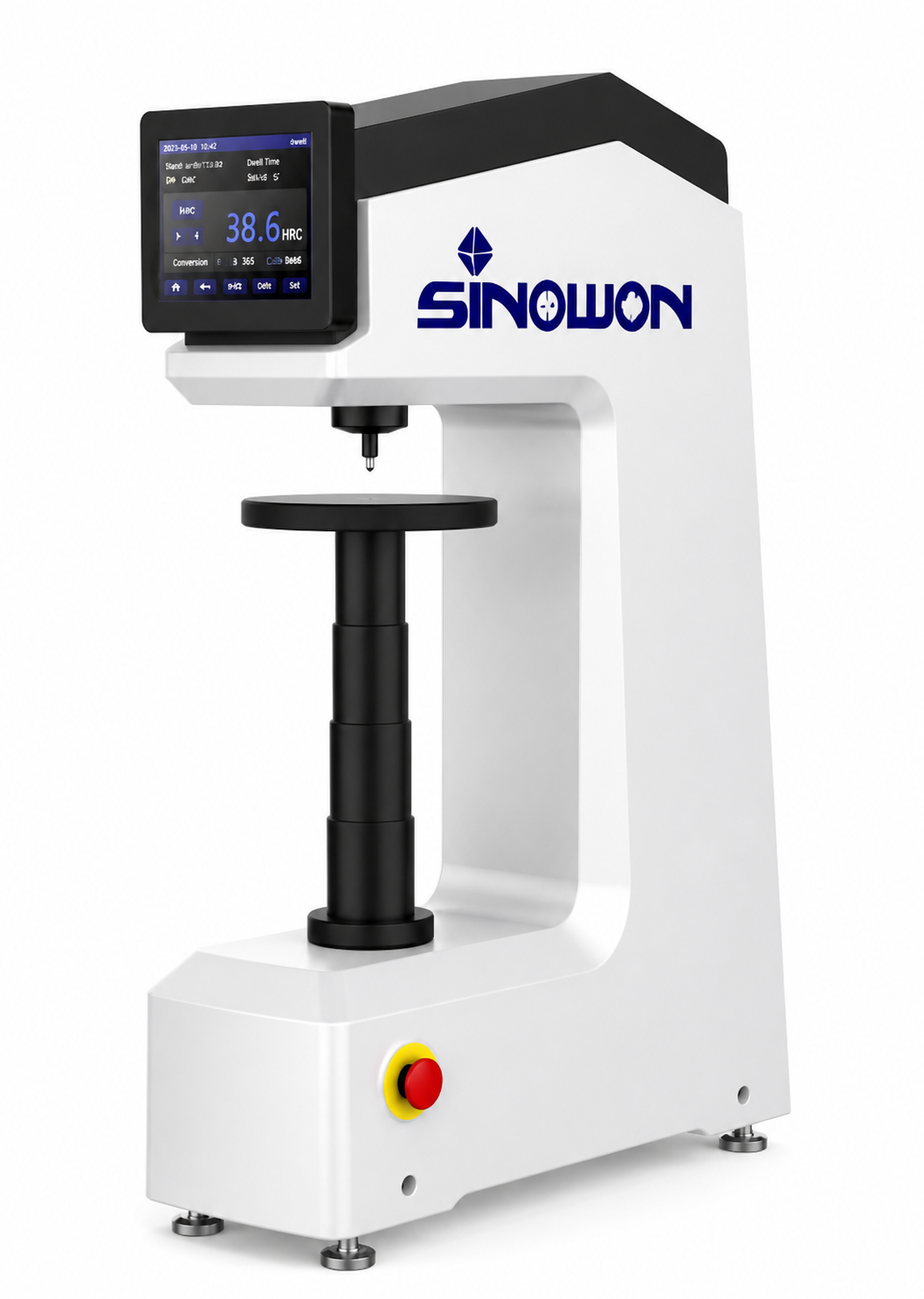

Fully Automatic Rockwell Hardness Tester Series – iRock

Fully Automatic Rockwell Hardness Tester Series – iRock

$32,780.00
$32,780.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The iRock Automatic Series is a premium fully automatic Rockwell hardness testing solution designed for production facilities, QC laboratories, and advanced manufacturing environments requiring maximum repeatability and reduced operator influence.

Featuring one-key automatic testing, auto lifting, automatic load change, automatic loading/dwell/unloading, and automatic hardness conversion, the iRock Series significantly improves testing efficiency while reducing human error.

The integrated 5.2” color touch screen provides a modern user experience with real-time display of test force, dwell time, hardness scale, conversion values, statistical analysis, and data management functions.

Available in Standard Rockwell, Superficial Rockwell, and Twin Rockwell configurations, the iRock Series is ideal for high-throughput inspection, production QC, metallurgy, heat treatment verification, aerospace, automotive, and industrial manufacturing applications.

The system also supports ASTM E140 hardness conversion, statistical reporting, upper/lower tolerance alarms, optional wireless printing, SPC software integration, and multi-language operation.

Features

• Fully automatic Rockwell hardness testing
• One-key automatic operation
• Auto lifting and automatic load change
• Auto loading, dwell and unloading
• 5.2” color touch screen interface
• Automatic hardness conversion
• Statistical analysis and group data processing
• ASTM and DIN hardness conversion support
• Upper and lower limit alarm settings
• Automatic Max / Min / Average calculations
• Resolution of 0.1HR
• Optional wireless printer and SPC software
• Multi-language operation
• Industrial production-ready design

Variants

Model Type Best For
iRock-DR1 Standard Rockwell General industrial production QC
iRock-SR1 Superficial Rockwell Thin materials and surface hardened components
iRock-TR1 Twin Rockwell Full Rockwell + Superficial Rockwell testing

Specifications

Specification iRock-DR1 iRock-SR1 iRock-TR1
Testing Type Standard Rockwell Superficial Rockwell Twin Rockwell
Preliminary Test Force 10Kgf 3Kgf 3Kgf / 10Kgf
Total Test Force 60 / 100 / 150Kgf 15 / 30 / 45Kgf 15 / 30 / 45 / 60 / 100 / 150Kgf
Display 5.2” Color Touch Screen 5.2” Color Touch Screen 5.2” Color Touch Screen
Resolution 0.1HR 0.1HR 0.1HR
Dwell Time 1–60s Adjustable 1–60s Adjustable 1–60s Adjustable
Loading Mode Fully Automatic Fully Automatic Fully Automatic
Data Storage 2000 Single / 1000 Group 2000 Single / 1000 Group 2000 Single / 1000 Group
Conversion Standards ASTM / DIN ASTM / DIN ASTM / DIN
Max Specimen Height 280mm 280mm 280mm
Throat Depth 170mm 170mm 170mm
Power Supply 220V / 110V 220V / 110V 220V / 110V
Net Weight 125kg 125kg 125kg

Rockwell Scales

iRock-DR1

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

iRock-SR1

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

iRock-TR1

Standard Rockwell + Superficial Rockwell combined

Standards

• ASTM E18
• ASTM E140
• EN ISO 6508
• GB/T230.2
• JIS Z2245

Standard Delivery

• Main instrument
• Diamond cone indenter
• Ball indenter
• Hardness test blocks
• Flat anvils
• V-anvil
• Weights set
• Bubble level
• Power cord
• Toolbox
• Dust cover
• Operation manual
• Packing list
• Warranty certificate

Optional Accessories

• Wireless printer
• Bluetooth receiver
• SPC software
• Additional ball indenters
• Steel balls
• Small flat anvils
• Indenter protector

Industries Used In

  • Manufacturing
  • Aerospace
  • Automotive
  • Heavy Engineering
  • Heat Treatment
  • Metal Fabrication
  • Foundries
  • Toolmaking
  • Quality Control Laboratories
  • Inspection Departments
  • Research & Development
  • Universities
  • Technical Training Institutions

Downloads

Entry-Level & Digital

DigiRock Manual & Electronic

Semi-Automatic Rockwell Hardness Tester Series – DigiRock

iRock Fully Automatic

iRock Heightened

Flagship Systems

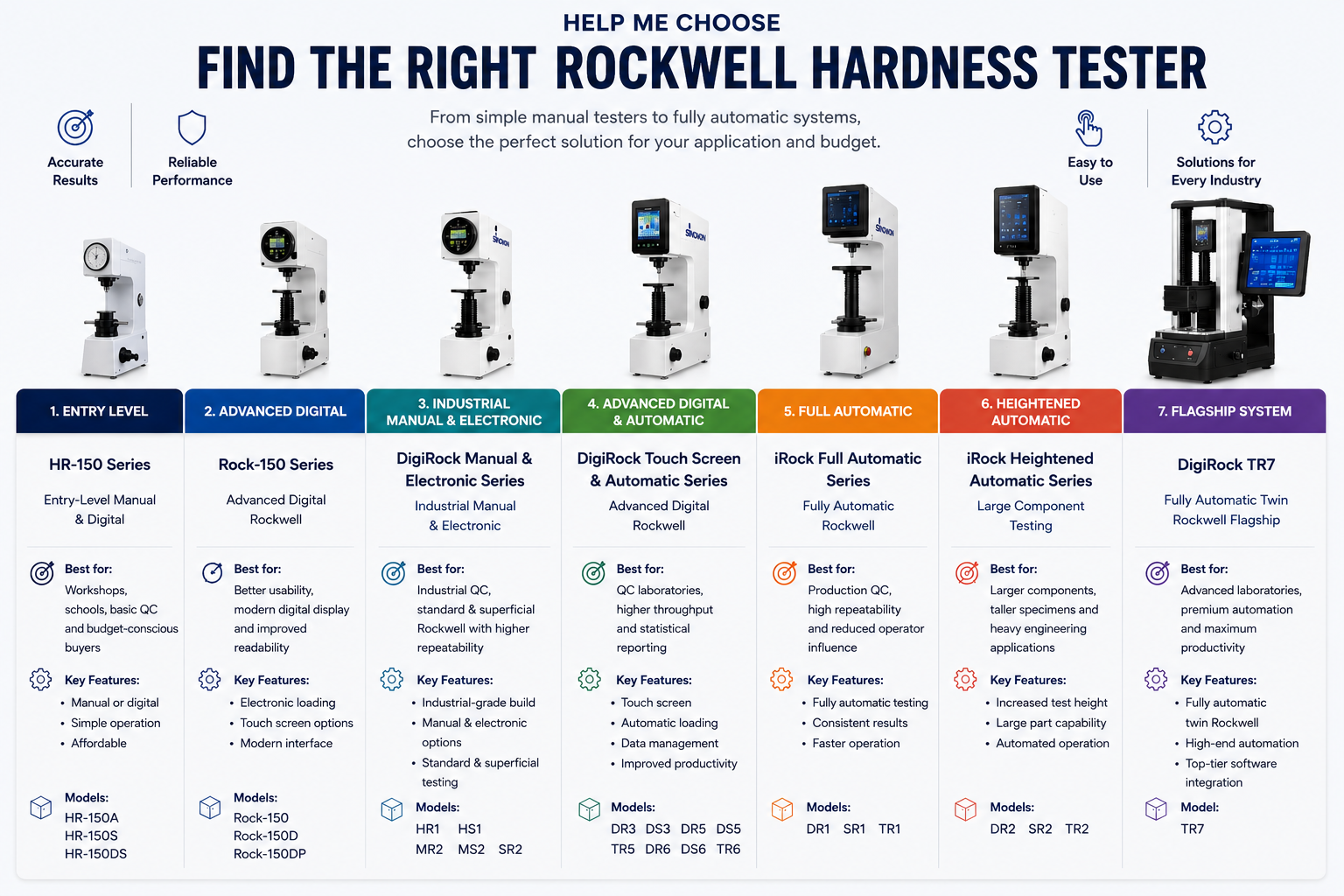

Compare the Rockwell Range

Series Positioning Automation Level Rockwell Types Best For Variants
HR-150 Series Entry-Level Manual & Digital Manual & Digital Standard Rockwell Workshops, schools, maintenance departments and budget-conscious buyers HR-150A / HR-150S / HR-150DS
Rock-150 Series Advanced Digital Rockwell Electronic Standard Rockwell Engineering workshops and improved digital usability Rock-150 / Rock-150D / Rock-150DP
DigiRock Manual & Electronic Series Industrial Manual & Electronic Manual & Electronic Standard / Superficial / Twin Industrial QC and manufacturing inspection HR1 / HS1 / MR2 / MS2 / SR2
DigiRock Touch Screen & Automatic Series Advanced Digital Rockwell Touch Screen & Automatic Standard / Superficial / Twin QC laboratories, advanced manufacturing and statistical reporting DR3 / DS3 / DR4 / TR4
iRock Automatic Series Fully Automatic Rockwell Fully Automatic Standard / Superficial / Twin Production facilities and automated QC environments DR1 / SR1 / TR1
iRock Heightened Automatic Series Large Component Testing Fully Automatic Standard / Superficial / Twin Heavy engineering and larger component applications DR2 / SR2 / TR2
DigiRock TR7 Fully Automatic Twin Rockwell Flagship Fully Automatic Twin Rockwell Aerospace, automotive, R&D and enterprise laboratories TR7
