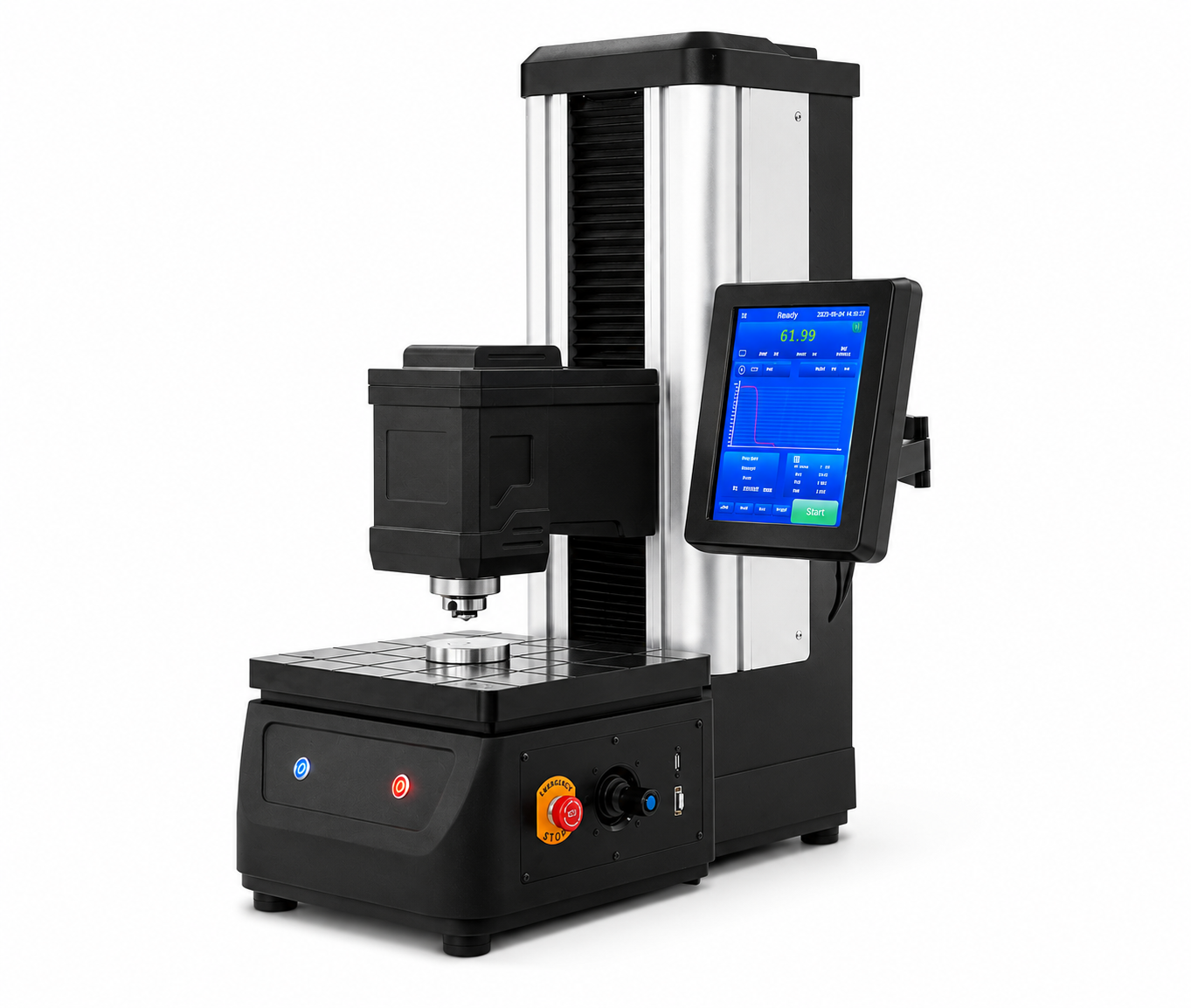

Automatic Twin Rockwell Hardness Tester – TR7
Automatic Twin Rockwell Hardness Tester – TR7
Couldn't load pickup availability
Description
The DigiRock TR7 is a premium fully automatic Twin Rockwell hardness tester designed for advanced laboratories, automated quality control environments, aerospace, automotive, and high-throughput manufacturing applications.
Unlike traditional Rockwell testers, the TR7 features a fully automatic moving-head design with closed-loop load control, delivering exceptional repeatability, reduced operator influence, and fast automated testing performance.
The fixed-stage construction improves testing stability and minimizes alignment errors commonly found in conventional screw-lift systems. Combined with high-speed precision motion control, the DigiRock TR7 is ideal for demanding production QC and statistical hardness analysis applications.
Featuring a high-definition LCD touch screen, automatic loading system, integrated data management, Bluetooth, USB and RS-232 connectivity, the TR7 is built for modern Industry 4.0 inspection environments.
Features
- Fully automatic Twin Rockwell hardness testing system
- High-precision closed-loop load control
- Moving-head automatic testing structure
- Fixed-stage design for improved repeatability
- High-speed precision motion control system
- High-definition LCD touch screen interface
- GO / NG tolerance judgment function
- Automatic statistical data management
- Wireless printer included
- USB, Bluetooth and RS-232 data output
- Rockwell and Superficial Rockwell scale support
- Multi-scale hardness conversion functionality
- Designed for laboratory and production-line QC environments
Specifications
| Specification | DigiRock TR7 |
|---|---|
| Product Type | Full-Auto Twin Rockwell Hardness Tester |
| Model | DigiRock TR7 |
| Code No. | 811-369 |
| Preliminary Test Force | 3kgf, 10kgf |
| Total Test Force | 15kgf, 30kgf, 45kgf, 60kgf, 100kgf, 150kgf |
| Indenters | Diamond Cone, Ø1.588mm Ball |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Superficial Scales | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Tolerance Judgment | GO / NG |
| Display | LCD Touch Screen |
| Data Output | Bluetooth, USB, RS-232 |
| Hardness Conversion | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HBS, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Maximum Specimen Height | 280mm |
| Throat Depth | 170mm |
| Power Supply | AC220V / 50Hz |
| Dimensions | 400 × 855 × 620mm |
Standards
- ISO 6508
- ASTM E18
- JIS Z2245
Standard Delivery
- DigiRock TR7 Main Unit
- Diamond Cone Indenter
- Ø1.588mm Ball Indenter
- Hardness Blocks:
- 20–33 HRC
- 57–70 HRC
- 85–100 HRB
- HR30N
- HR30T
- HR15N
- Ø60mm Flat Anvil
- Ø40mm V-Anvil
- Wireless Printer
- Power Cable
- Toolbox
- Dust Cover
- Operation Manual
- Packing List
- Warranty Card
- Qualified Certificate
Best For
- Aerospace manufacturing
- Automotive QC laboratories
- Production-line inspection
- High-volume automated testing
- Advanced R&D laboratories
- Enterprise quality control systems
Industries Used In
- Manufacturing
- Aerospace
- Automotive
- Heavy Engineering
- Heat Treatment
- Metal Fabrication
- Foundries
- Toolmaking
- Quality Control Laboratories
- Inspection Departments
- Research & Development
- Universities
- Technical Training Institutions
Downloads
Entry-Level & Digital
DigiRock Manual & Electronic
Semi-Automatic Rockwell Hardness Tester Series – DigiRock
iRock Fully Automatic
iRock Heightened
Flagship Systems

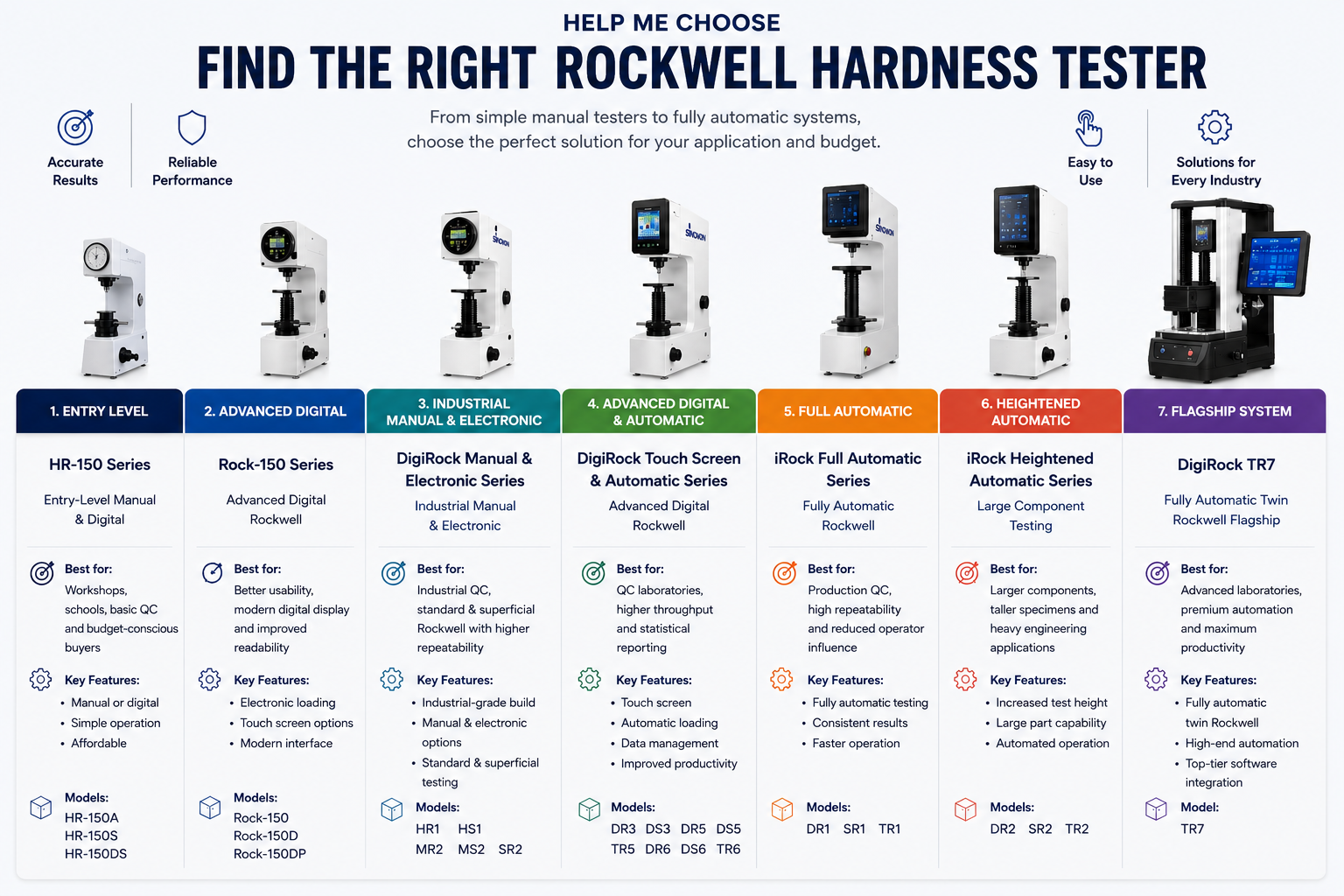

Compare the Rockwell Range
| Series | Positioning | Automation Level | Rockwell Types | Best For | Variants |
|---|---|---|---|---|---|
| HR-150 Series | Entry-Level Manual & Digital | Manual & Digital | Standard Rockwell | Workshops, schools, maintenance departments and budget-conscious buyers | HR-150A / HR-150S / HR-150DS |
| Rock-150 Series | Advanced Digital Rockwell | Electronic | Standard Rockwell | Engineering workshops and improved digital usability | Rock-150 / Rock-150D / Rock-150DP |
| DigiRock Manual & Electronic Series | Industrial Manual & Electronic | Manual & Electronic | Standard / Superficial / Twin | Industrial QC and manufacturing inspection | HR1 / HS1 / MR2 / MS2 / SR2 |
| DigiRock Touch Screen & Automatic Series | Advanced Digital Rockwell | Touch Screen & Automatic | Standard / Superficial / Twin | QC laboratories, advanced manufacturing and statistical reporting | DR3 / DS3 / DR4 / TR4 |
| iRock Automatic Series | Fully Automatic Rockwell | Fully Automatic | Standard / Superficial / Twin | Production facilities and automated QC environments | DR1 / SR1 / TR1 |
| iRock Heightened Automatic Series | Large Component Testing | Fully Automatic | Standard / Superficial / Twin | Heavy engineering and larger component applications | DR2 / SR2 / TR2 |
| DigiRock TR7 | Fully Automatic Twin Rockwell Flagship | Fully Automatic | Twin Rockwell | Aerospace, automotive, R&D and enterprise laboratories | TR7 |
