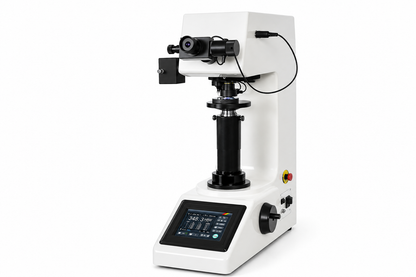

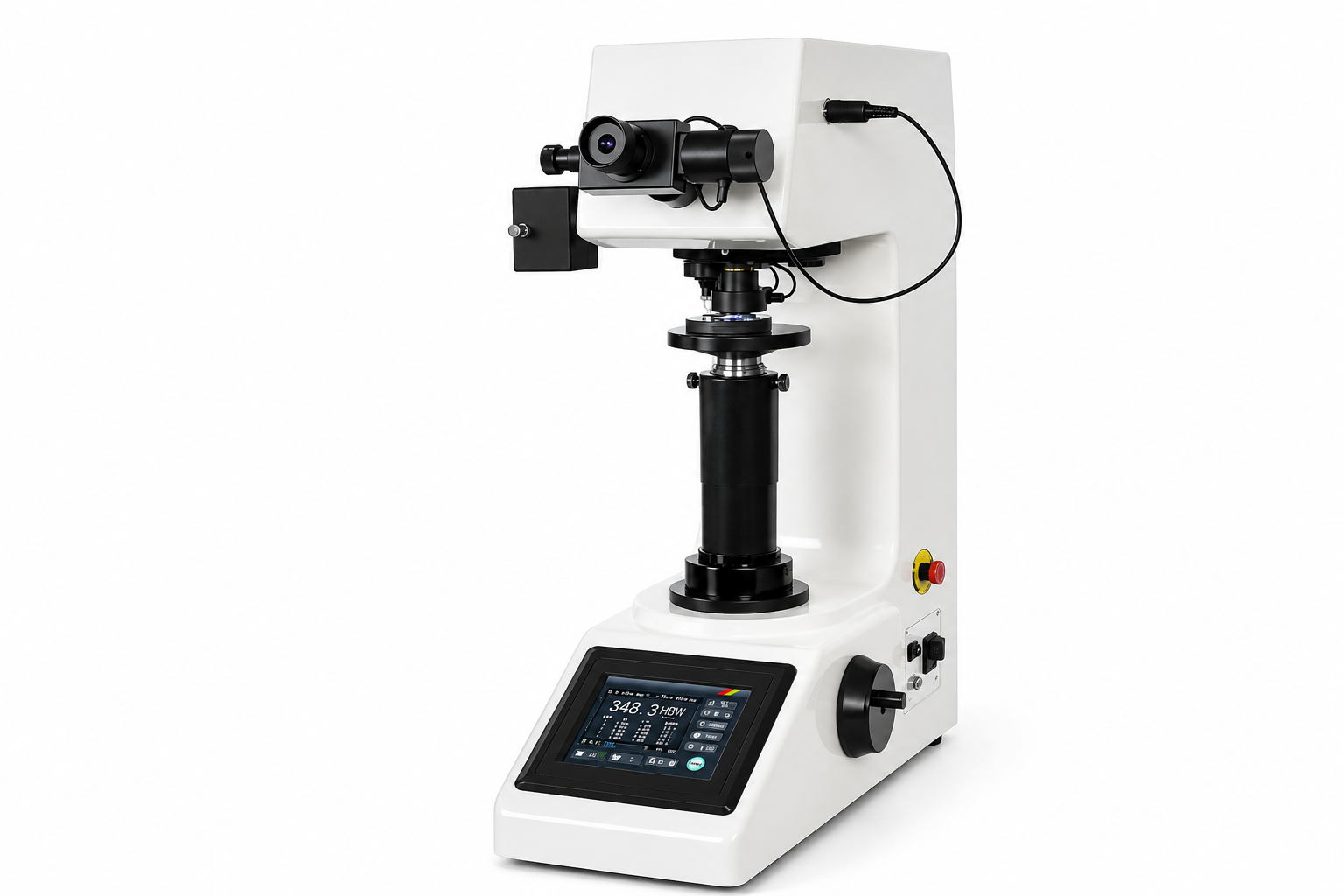

Digital Low Load Brinell Hardness Tester – SHB-62.5A

Digital Low Load Brinell Hardness Tester – SHB-62.5A

$20,840.00
$20,840.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Sinowon SHB-62.5A Digital Low Load Brinell Hardness Tester is a high-precision semi-automatic Brinell hardness testing system designed specifically for low force Brinell testing applications requiring improved accuracy, repeatability, and digital measurement capability.

Unlike traditional dead-weight Brinell testers, the SHB-62.5A uses advanced pressure sensor technology to replace conventional weight loading systems, significantly improving force accuracy and testing consistency.

The system features automatic loading, dwell, and unloading functions combined with a digital Brinell microscope and integrated hardness calculation software. Operators simply align the indentation and the system automatically calculates and displays the Brinell hardness value, eliminating manual microscope reading and hardness table calculations.

Designed for thin materials, small components, light load Brinell testing, precision engineering, laboratories, heat treatment verification, and industrial quality control applications, the SHB-62.5A delivers fast, accurate, and repeatable low load Brinell hardness testing performance.

Features

  • Semi-automatic digital low load Brinell hardness tester
  • Advanced pressure sensor loading system
  • Automatic loading, dwell, and unloading
  • Digital Brinell microscope system
  • Automatic hardness value calculation
  • Automatic hardness value display
  • Auto-turret lens and indenter switching
  • Digital indentation measurement
  • Adjustable LED illumination system
  • Improved testing speed and accuracy
  • Eliminates manual hardness table calculations
  • Reduces operator influence and reading errors
  • Suitable for low force Brinell testing applications
  • Integrated LCD display
  • High repeatability and measurement precision

Specifications

Model SHB-62.5A
Product Type Digital Low Load Brinell Hardness Tester
Code 831-302
Testing Forces 1kgf, 5kgf, 6.25kgf, 10kgf, 15.625kgf, 30kgf, 31.25kgf, 62.5kgf
Testing Range 8~650 HBW
Loading Control Automatic (loading, dwell, unloading)
Lens & Indenter Switching Auto-Turret
Objective Magnification Observation: 5x/10x & Measurement: 5x/10x
Eyepiece 10x Digital Eyepiece
Measuring Range 0.6~1.5mm
Resolution 0.5μm (5x), 0.25μm (10x)
Dwell Time 0~60s
Hardness Measurement Automatic Measuring & Auto Reading
Maximum Specimen Height 185mm
Instrument Throat 130mm
Power Supply AC220V/50Hz; 110V/60Hz
Dimensions 530 × 280 × 630mm
Gross / Net Weight 47kg / 35kg
Standards ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2

Accuracy

Hardness Range Maximum Tolerance Repeatability
HBW ≤ 125 ≤ ±3.5% ≤ 3.5%
125 < HBW ≤ 225 ≤ ±2.5% ≤ 3.0%
HBW > 225 ≤ ±2.0% ≤ 2.5%

Brinell Scales

Ball Indenter Diameter Brinell Scales
5mm HBW5/62.5
2.5mm HBW2.5/62.5, HBW2.5/31.25, HBW2.5/15.625, HBW2.5/6.25
1mm HBW1/30, HBW1/10, HBW1/5


Standard Accessories

  • Instrument Main Body
  • 10x Digital Eyepiece
  • 5x Objective
  • 10x Objective
  • Ø5mm Ball Indenter
  • Ø2.5mm Ball Indenter
  • Ø1mm Ball Indenter
  • Hardness Blocks
  • Ø100mm Flat Anvil
  • Ø40mm V-shape Anvil
  • Level Screw
  • Accessories Box
  • Power Cable
  • Operation Manual

Industries Used In

  • Precision engineering
  • Heat treatment facilities
  • Tool manufacturing
  • Metal component manufacturing
  • Industrial quality control
  • Research laboratories
  • Universities and technical institutes
  • Thin material testing
  • Small component inspection
  • Manufacturing quality assurance

Alternative Names

  • Low Load Brinell Hardness Tester
  • Digital Brinell Hardness Tester
  • Semi-Automatic Brinell Tester
  • Precision Brinell Hardness Tester
  • Laboratory Brinell Hardness Tester
  • Automatic Brinell Hardness Tester
  • Digital HBW Hardness Tester
  • Small Load Brinell Hardness Machine
Downloads

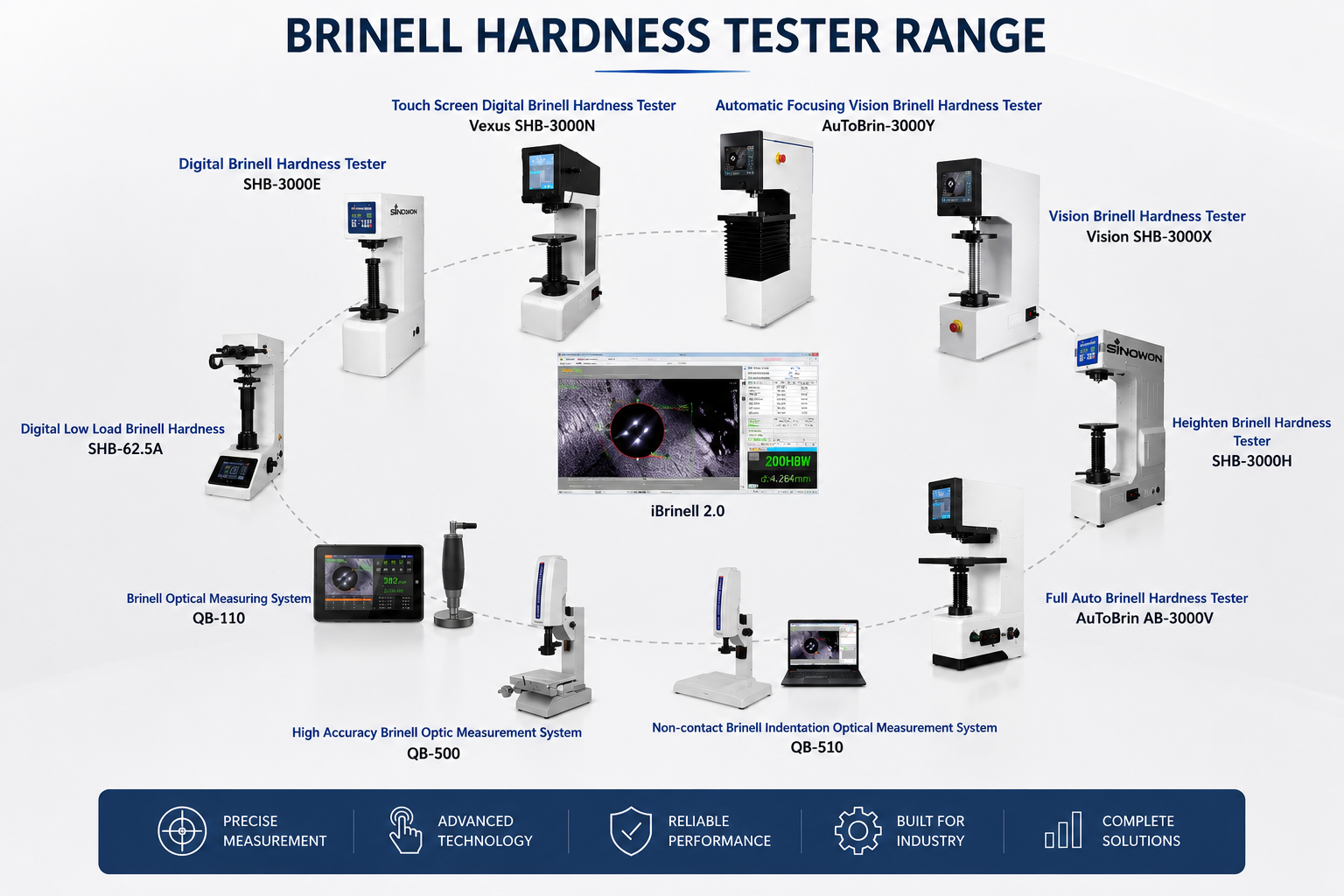

Compare the Brinell Range

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
