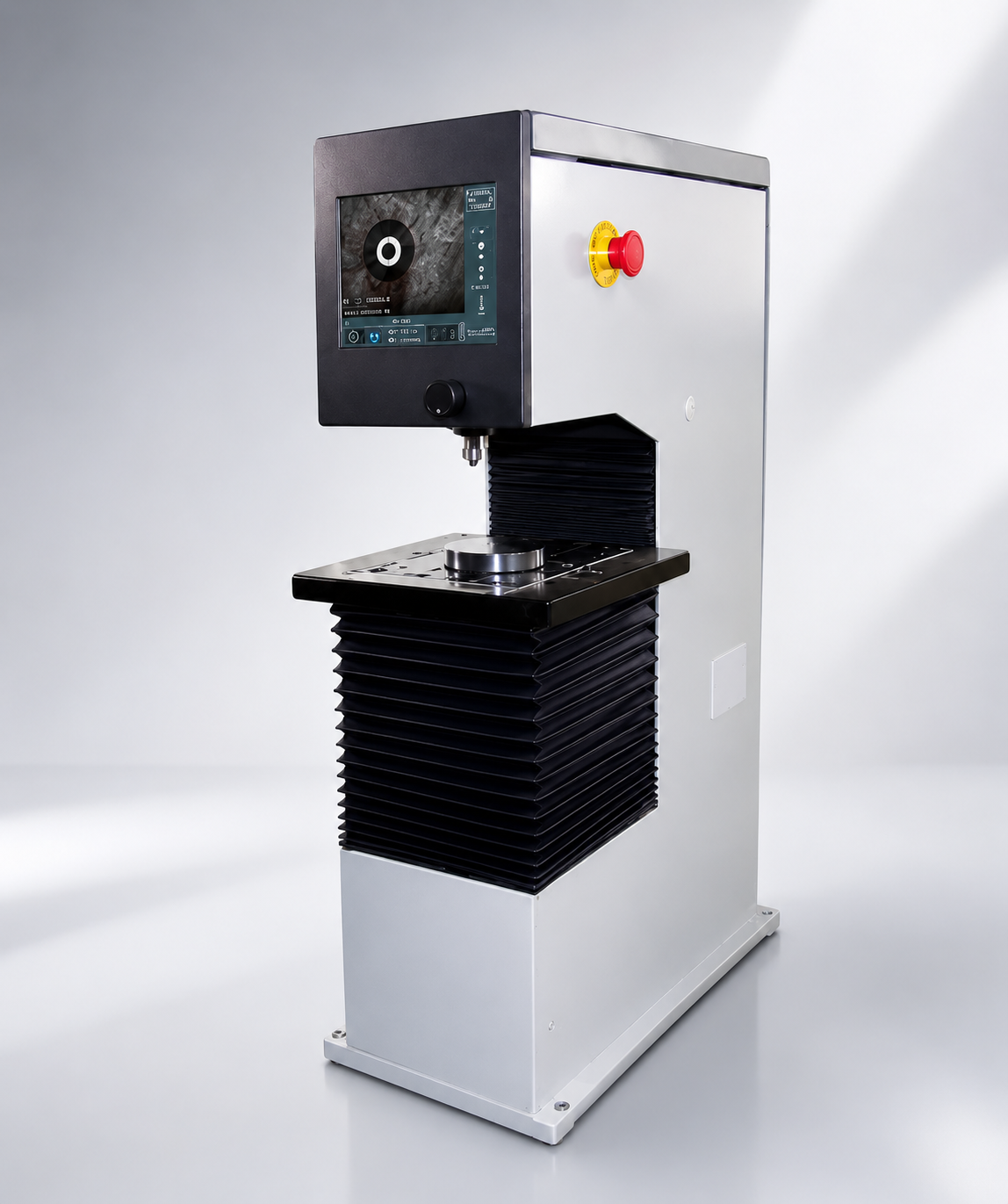

Auto Focus Vision Brinell Hardness Tester – AutoBrin-3000Y

Auto Focus Vision Brinell Hardness Tester – AutoBrin-3000Y

$35,050.00
$35,050.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The AuToBrin-3000Y Automatic Focusing Vision Brinell Hardness Tester is an advanced industrial Brinell hardness testing system designed for laboratories, manufacturing facilities, research departments, and precision quality control environments requiring fast, repeatable, and highly accurate hardness measurement.

The system combines automatic focusing technology, embedded vision measurement, high-precision step-controlled loading, and automatic indentation analysis to significantly improve testing efficiency while reducing operator influence and measurement inconsistency.

Designed around a modern optical vision workflow, the AuToBrin-3000Y replaces traditional mechanical eyepiece measurement with a high-definition industrial camera and LCD vision system, enabling faster indentation analysis, improved repeatability, and simplified operation. The system can reduce measurement time by up to 50% compared to traditional Brinell hardness testers.

The AuToBrin-3000Y is ideal for advanced QC laboratories, automotive manufacturing, aerospace applications, heat treatment facilities, foundries, and industrial production environments requiring high-performance Brinell hardness testing with modern digital workflow integration.

Features

  • Automatic focusing vision Brinell hardness tester
  • Embedded industrial vision measurement system
  • Automatic focusing functionality
  • Automatic loading, dwell and unloading
  • High-precision step-controlled loading technology
  • Real-time video indentation measurement
  • LCD display with digital image analysis
  • Reduced operator influence and fatigue
  • High-definition industrial camera system
  • Faster and more consistent testing workflow
  • Automatic hardness calculation
  • Automatic objective lens and indenter switching
  • Built-in printer output
  • Stable heavy-duty industrial frame
  • ASTM and ISO compliant testing

Features sourced from manufacturer datasheet.

Specifications

Specification AuToBrin-3000Y
Product Type Automatic Focusing Vision Brinell Hardness Tester
Model AuToBrin-3000Y
Code 831-165
Test Method Vision Brinell
Operation Type Auto Focus Vision
Display Type LCD Vision Display
Focusing Method Automatic
Objective / Indenter Switching Automatic
Measuring Unit Resolution 1µm
Hardness Testing Range 8 – 650 HBW
Total Magnification 20X
Dwell Time 0 – 60s
Scale Conversion HR / HV / HK
Test Force Range 62.5kgf – 3000kgf
Test Force Values 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
Test Force Control High Precision Step-Control System
Data Output Built-in Printer
Maximum Specimen Height 250mm
Throat Depth 158mm
Power Supply AC90–240V, 50–60Hz
Machine Dimensions 590 × 250 × 835mm
Machine Weight Approx. 140kg
Standards ASTM / ISO / GB

Technical specifications sourced from manufacturer datasheet.

Delivery Scope

  • AuToBrin-3000Y Main Unit
  • Ø10mm Steel Ball Indenter
  • Ø5mm Steel Ball Indenter
  • Ø2.5mm Steel Ball Indenter
  • Hardness Test Blocks
  • Ø200mm Working Stage
  • Ø60mm Working Stage
  • Ø40mm V-Shape Anvil
  • Power Cable
  • Toolbox
  • Dust Cover
  • Warranty Documentation
  • User Manual

Delivery scope sourced from manufacturer datasheet.

Industries Used In

  • Automotive
  • Aerospace
  • Heat Treatment
  • Foundries
  • Heavy Engineering
  • Industrial Manufacturing
  • Metal Processing
  • Steel Production
  • Quality Control Laboratories
  • Research & Development
  • Universities
  • Technical Training Institutions
  • Advanced Inspection Laboratories
  • Production Quality Assurance
Downloads
Compare the Brinell Range

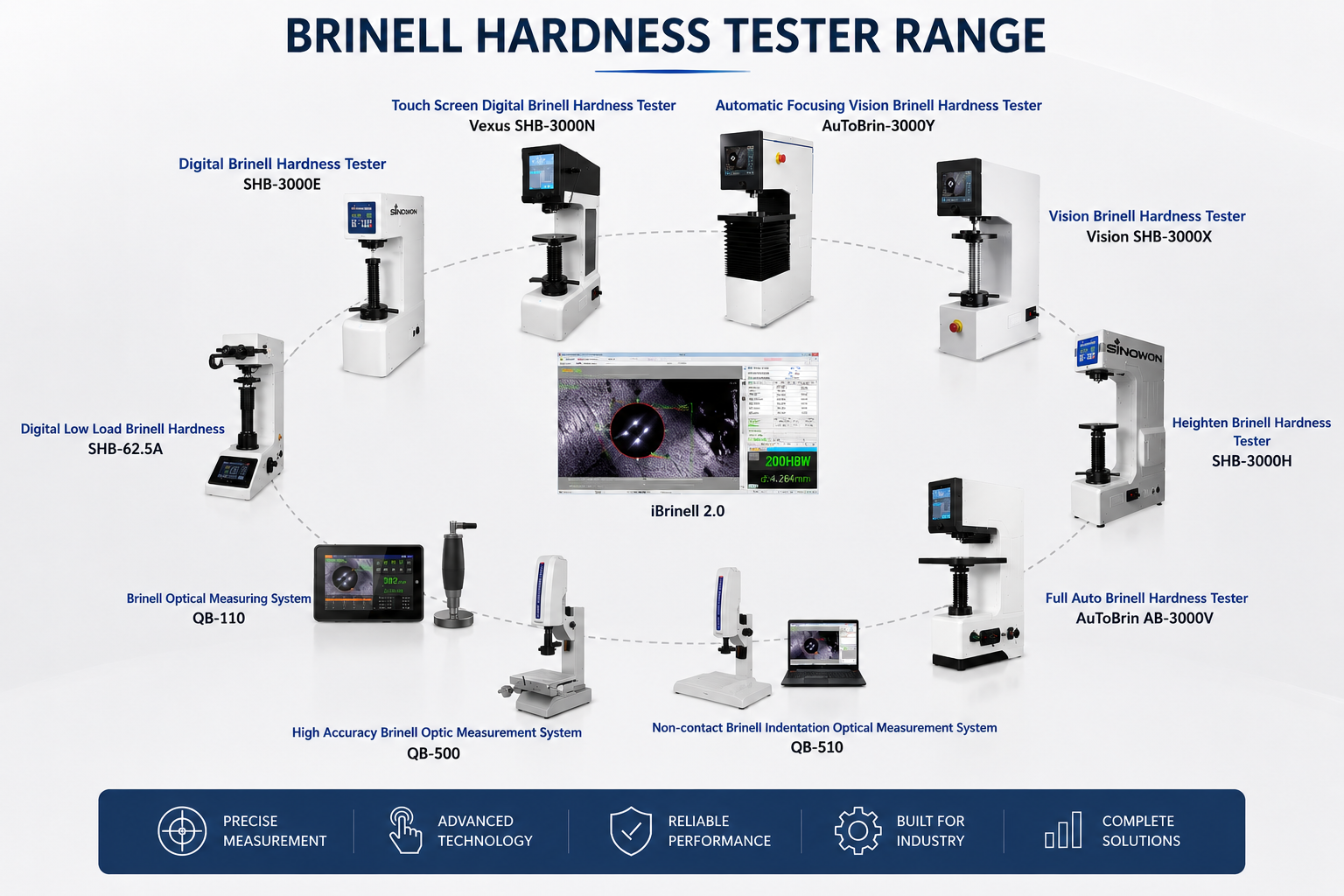

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
