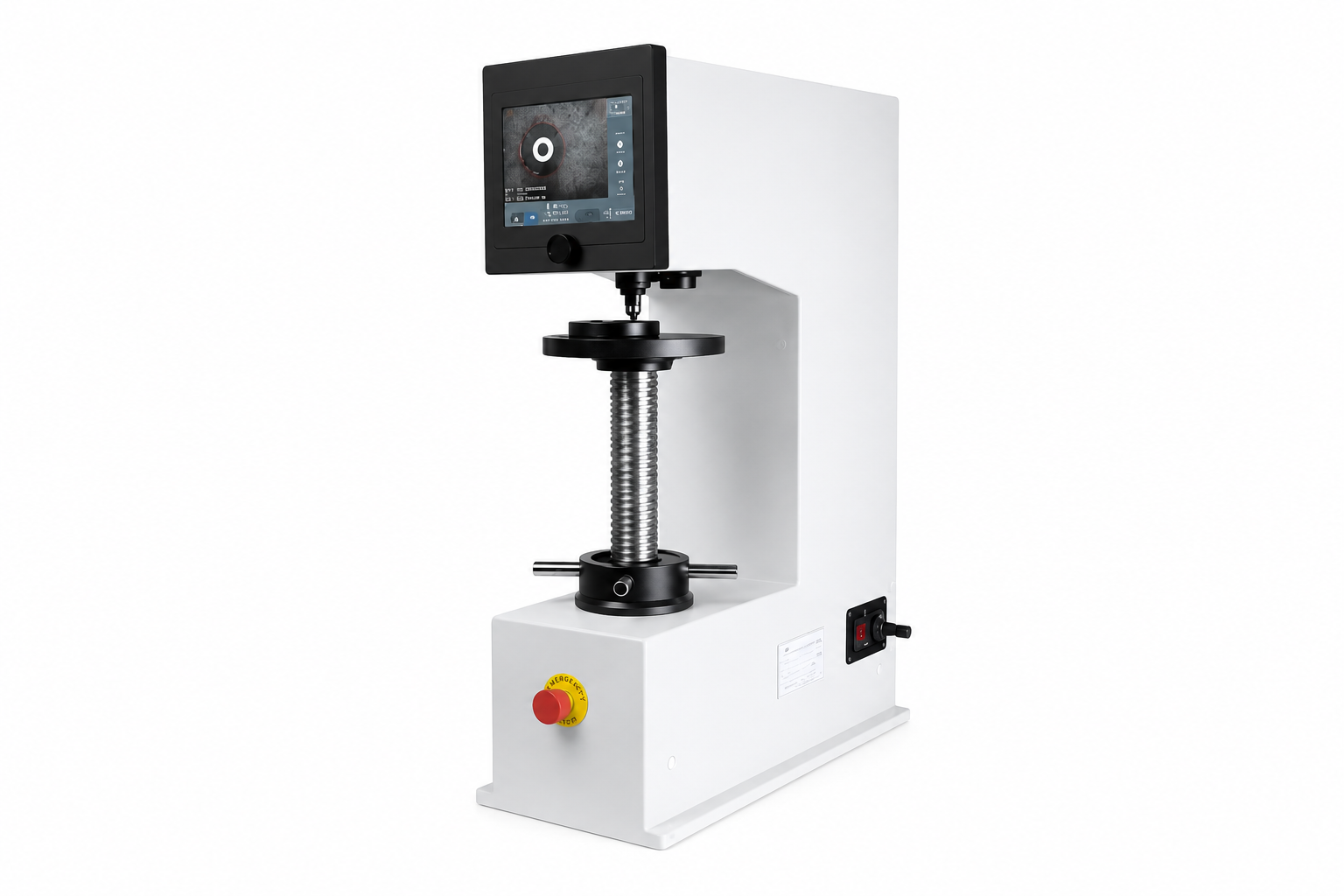

Vision Brinell Hardness Tester – Vision SHB-3000X

Vision Brinell Hardness Tester – Vision SHB-3000X

$24,210.00
$24,210.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Sinowon Vision Brinell Hardness Tester – Vision SHB-3000X is an advanced automatic optical Brinell hardness testing system designed for high-precision hardness measurement of metallic materials.

Unlike traditional eyepiece-based Brinell testers, the Vision SHB-3000X uses an embedded industrial vision system with high-definition camera measurement technology for fast, repeatable, and highly accurate indentation analysis. The integrated LCD display and real-time video measurement system significantly reduce operator error while improving consistency and testing efficiency.

Designed with a heavy-duty rigid frame structure and precision electronic loading system, this tester delivers stable test force application with smooth step-controlled loading and unloading. The machine automatically calculates and displays Brinell hardness values after indentation measurement, making operation faster and easier compared to conventional manual systems.

The Vision SHB-3000X is ideal for laboratories, manufacturing quality control, heat treatment facilities, foundries, steel production, aerospace, automotive, engineering workshops, and research institutions requiring accurate Brinell hardness testing.

Features

  • Advanced embedded vision measurement system
  • Industrial-grade high-definition camera measurement technology
  • Real-time video indentation measurement
  • Automatic Brinell hardness calculation and display
  • High-precision electronic step-controlled loading system
  • Fast and stable loading and unloading speeds
  • Strong rigid mechanical frame structure
  • LCD display for operation and results
  • Automatic objective lens and indenter switching
  • Manual focusing system
  • Reduced operator measurement error
  • Consistent repeatable results between operators
  • Built-in printer for test result output
  • Remote control functionality
  • Adjustable brightness and white balance settings
  • Faster testing compared to traditional eyepiece systems
  • Intelligent piecewise force control technology
  • Supports multiple Brinell test scales
  • HR, HV and HK scale conversion estimation
  • High measurement consistency and reduced visual fatigue
  • Suitable for production and laboratory environments

Specifications

Model Vision SHB-3000X
Product Type Vision Brinell Hardness Tester
Code 831-155
Test Forces (kgf) 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Test Forces (N) 612.9 to 29420N
Dwell Time 0 – 60s
Objective & Indenter Switching Automatic
Focusing Method Manual
Measuring Range 8 – 650 HBW
Hardness Indication LCD Display
Data Output Built-in Printer
Scale Conversion HR, HV, HK est.
Total Magnification 20X
Maximum Specimen Height 240mm
Distance from Indenter to Body 160mm
Minimum Measuring Unit 1μm
Power Supply AC90-240V, 50/60Hz
Dimensions 580 × 250 × 830mm
Gross / Net Weight 170kg / 140kg
Standards JJG150-2005, GB/T231, ASTM D-785, ISO6506

Standard Accessories

  • Main body
  • Ø10mm Steel Ball Indenter
  • Ø5mm Steel Ball Indenter
  • Ø2.5mm Steel Ball Indenter
  • HBW 10/3000 Hardness Block
  • HBW 5/750 Hardness Block
  • Ø200mm Working Stage
  • Ø60mm Working Stage
  • Ø40mm V-shape Anvil
  • Power Cord
  • Toolbox
  • Dust Cover
  • Certificate
  • Warranty Card
  • Instruction Manual
  • Packing List

Industries Used In

  • Metal manufacturing
  • Heat treatment facilities
  • Steel and foundry industries
  • Automotive manufacturing
  • Aerospace engineering
  • Industrial quality control laboratories
  • Research and development laboratories
  • Engineering workshops
  • Educational institutions
  • Materials testing laboratories

Alternative Names

  • Optical Brinell Hardness Tester
  • Video Brinell Hardness Tester
  • Vision Hardness Tester
  • Automatic Brinell Hardness Testing Machine
  • Digital Brinell Hardness Tester
  • Industrial Brinell Hardness Tester
  • Camera-Based Brinell Hardness Tester
  • HBW Hardness Tester
Downloads

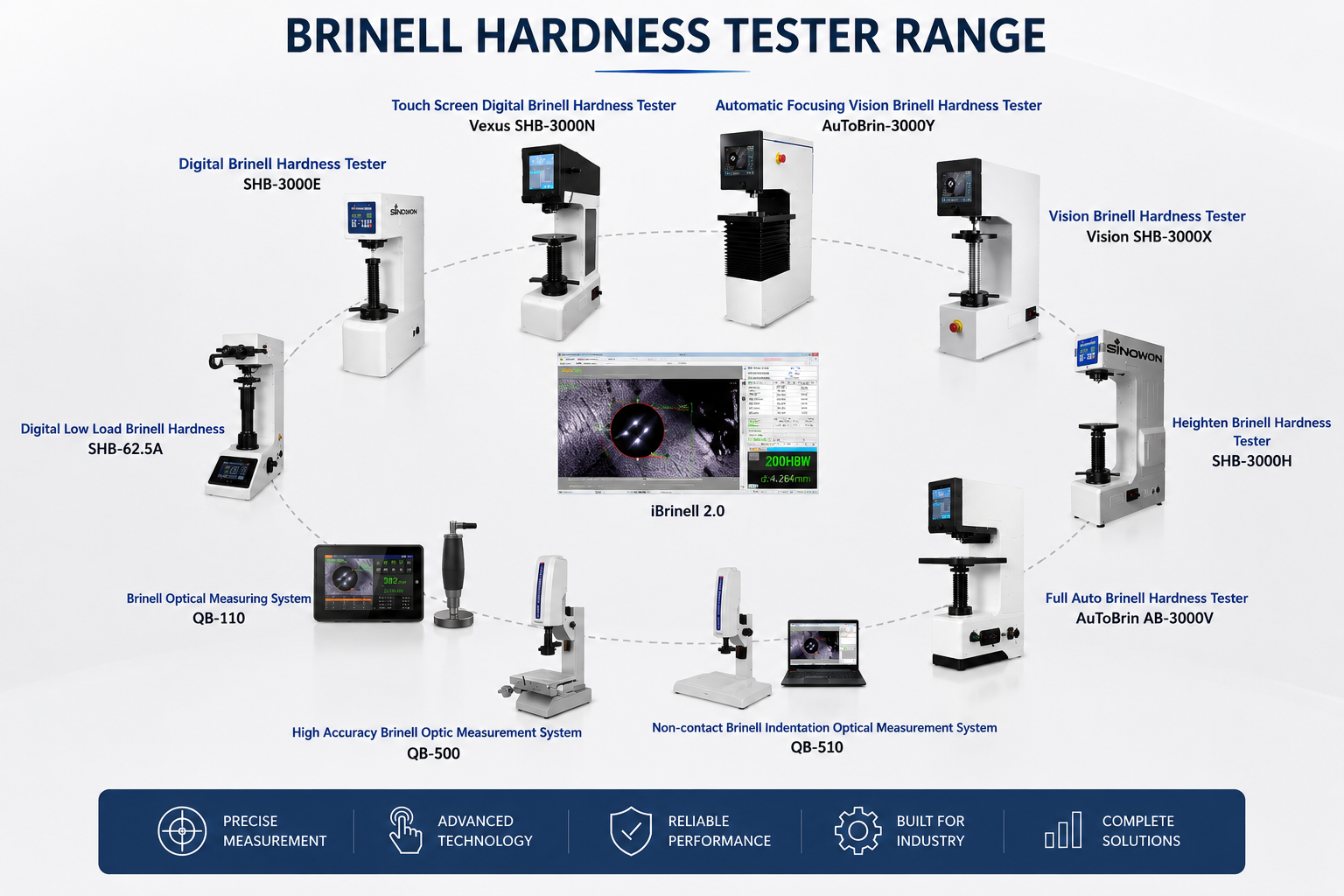

Compare the Brinell Range

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
