Portable & Workshop Brinell Optical Measurement Systems

Portable & Workshop Brinell Optical Measurement Systems

$114,920.00
$114,920.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon Portable & Workshop Brinell Optical Measurement System Series is designed for fast, affordable, and accurate digital Brinell indentation measurement in workshop, field inspection, and production environments.

Traditional Brinell hardness verification often relies on manual microscopes, visual estimation, and hardness conversion charts. The QB-100 Series modernises this process with digital optical measurement technology, automated hardness calculation, and improved measurement repeatability.

These systems are ideal for companies already using Brinell hardness testers and looking to upgrade to faster digital indentation analysis without investing in a fully automated laboratory-grade optical system.

The QB-100 Series is particularly well suited for workshops, NDT inspection, steel fabrication, foundries, maintenance environments, and portable hardness verification applications.

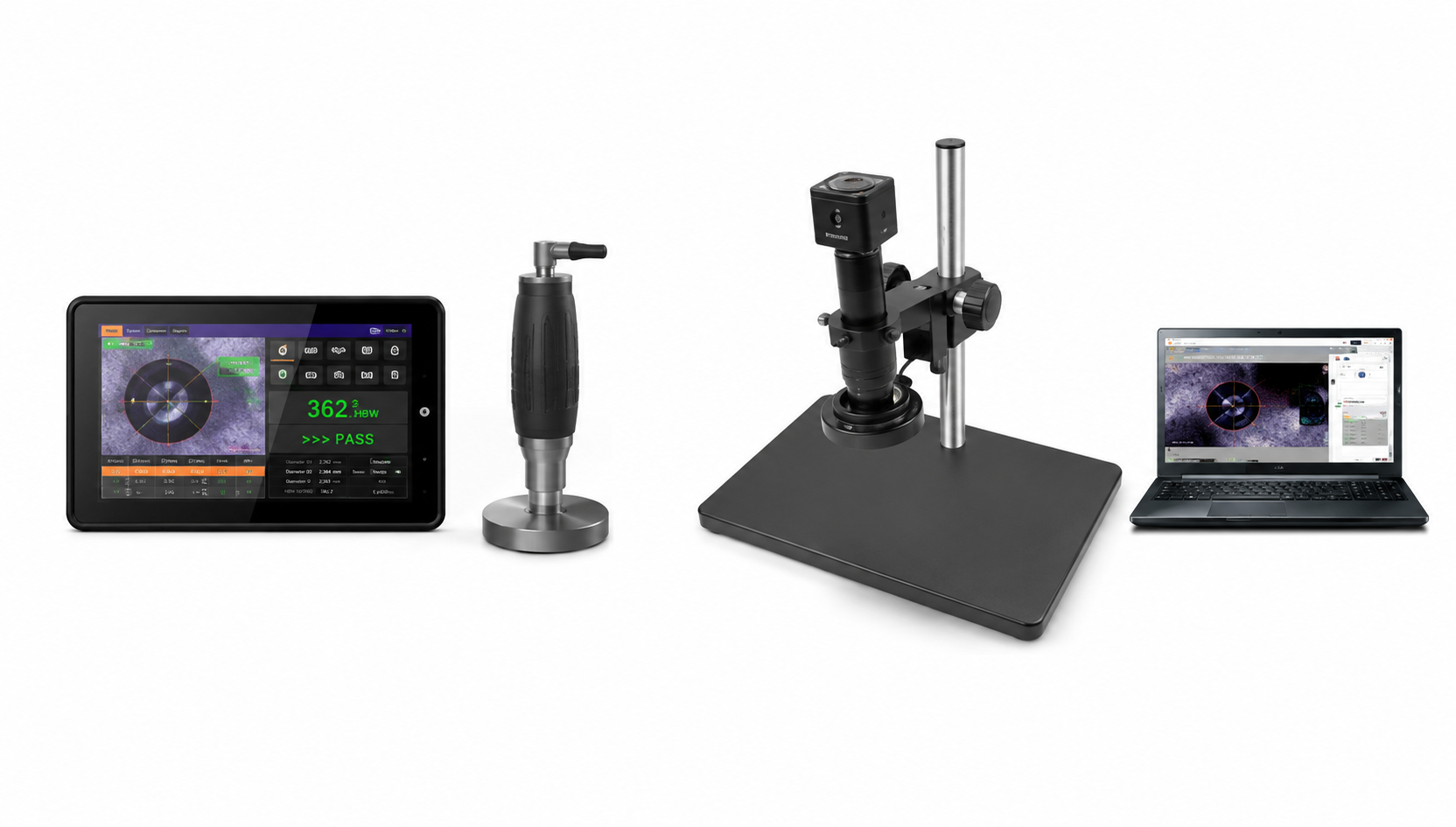

Models Available

QB-100/250 – Portable Contact Brinell Indentation Optical Measurement System

Portable contact optical measurement system designed for field inspections, portable Brinell verification, and workshop applications requiring fast hardness indentation analysis.

QB-100A – Non-contact Brinell Indentation Optical Measurement System

Entry-level non-contact optical Brinell indentation measurement system designed for workshop digital hardness analysis and improved measurement repeatability.

Features

  • Digital Brinell indentation measurement
  • Automatic hardness calculation
  • Improved repeatability compared to manual microscopes
  • Portable and workshop-friendly operation
  • Fast indentation analysis workflow
  • Compatible with most Brinell hardness testers
  • Reduced operator influence
  • Digital image-based measurement
  • Easy-to-use operation
  • Compact system design
  • Suitable for upgrading existing Brinell testers
  • Ideal for workshop and field inspection environments

Product Comparison Table

Model QB-100/250 QB-100A
Product Type Portable Contact Optical Measurement Non-contact Optical Measurement
Application Portable / NDT On-site Workshop
Measurement Type Contact Measurement Non-contact Measurement
Compatible Indenters 10mm, 5mm, 2.5mm 10mm, 5mm, 2.5mm
Best For Portable inspection and workshop use Workshop digital measurement
Key Advantage Portable Brinell verification Entry-level digital optical analysis

Industries Used In

  • Workshops
  • Steel fabrication
  • Foundries
  • Manufacturing maintenance
  • NDT inspection
  • Industrial quality control
  • Heat treatment facilities
  • Portable field inspection
  • Engineering workshops
  • Production verification

Alternative Names

  • Portable Brinell Optical Measurement System
  • Workshop Brinell Optical Analyzer
  • Brinell Indentation Measurement System
  • Digital Brinell Measurement Device
  • Portable Brinell Verification System
  • Optical Brinell Analyzer
  • Digital Brinell Microscope
  • Brinell Hardness Verification System
Downloads

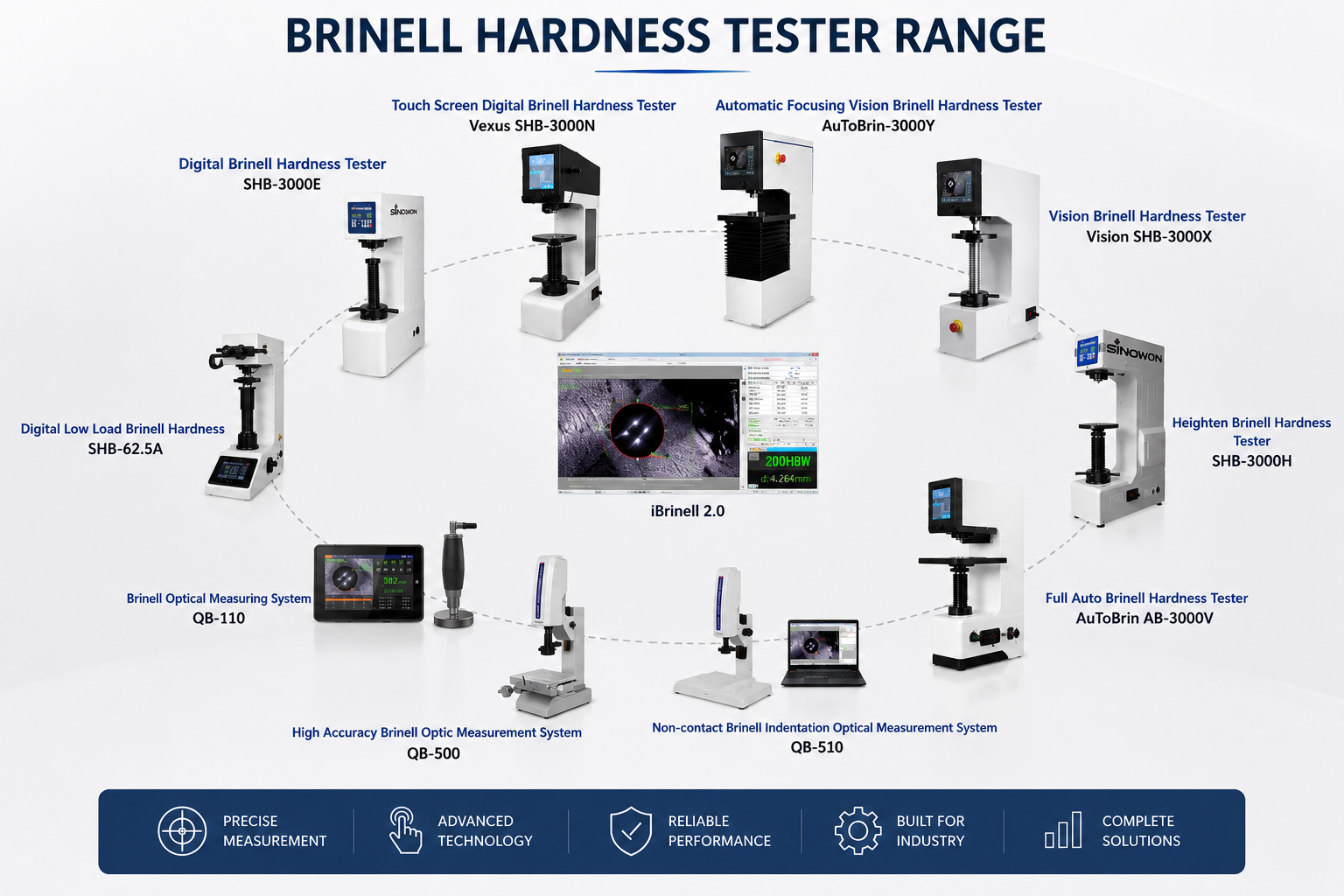

Compare the Brinell Range

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
