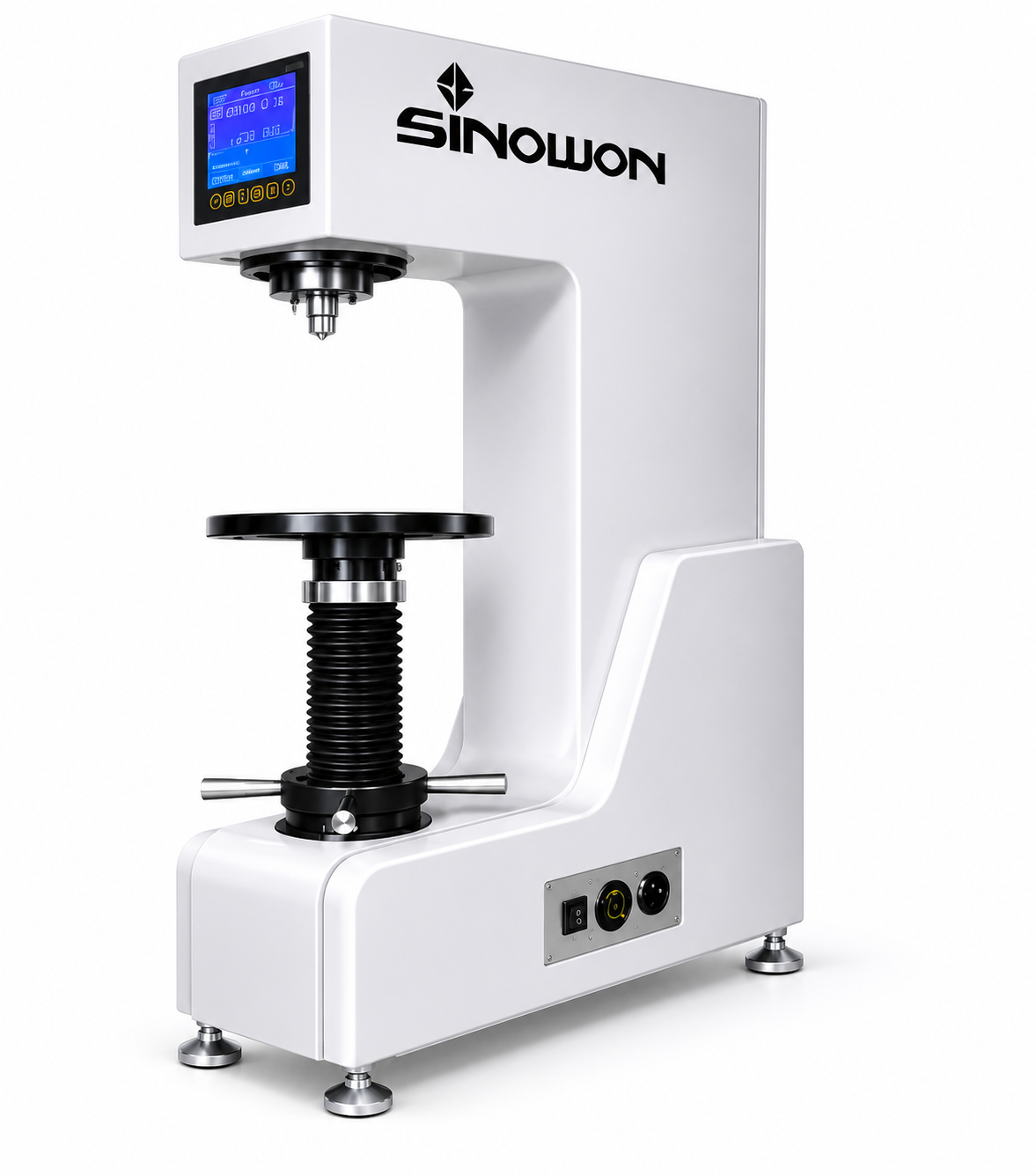

Large Capacity Brinell Hardness Tester – SHB-3000H

Large Capacity Brinell Hardness Tester – SHB-3000H

$22,420.00
$22,420.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Sinowon Digital Heighten Brinell Hardness Tester – SHB-3000H is a high-precision automatic Brinell hardness testing system designed for reliable hardness measurement across a wide range of metallic materials.

Utilising advanced closed-loop load cell technology, the SHB-3000H eliminates the common force overshoot and undershoot problems associated with traditional dead-weight hardness testers. The result is improved accuracy, higher repeatability, and greater testing consistency across all test loads.

The fully automatic testing cycle handles load application, dwell time, and unloading automatically, significantly reducing operator influence while improving repeatability and productivity. The integrated LCD display allows quick selection of test forces and dwell times, while the built-in Brinell Hardness Calculator (BHC) instantly calculates hardness values directly on-screen after indentation measurement.

Equipped with a 20X digital microscope and RS232/printer output, the SHB-3000H provides an efficient and economical solution for laboratories, foundries, metallurgy, forging operations, universities, and industrial quality control environments requiring accurate Brinell hardness testing.

Features

  • Advanced closed-loop electronic load cell technology
  • Fully automatic loading, dwell, and unloading cycle
  • High-accuracy force control with reduced overshoot
  • LCD display with keyboard operation
  • Brinell Hardness Calculator (BHC)
  • Instant hardness value calculation
  • 20X digital microscope for indentation measurement
  • Automatic hardness conversion (HR, HV, HK etc.)
  • Reduced operator influence for improved repeatability
  • Lightweight design compared to traditional dead-weight systems
  • RS232 and printer output support
  • Adjustable dwell times via screen
  • Easy electronic test force selection
  • High repeatability and measurement consistency
  • Suitable for production and laboratory environments

Specifications

Model SHB-3000H
Product Type Digital Heighten Brinell Hardness Tester
Code 831-152
Test Forces (kgf) 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Test Forces (N) 612.9N – 29400N
Testing Range 8 – 650 HBW
Hardness Display LCD Display
Microscope 20X Digital Microscope
Maximum Specimen Height 430mm / 450mm
Throat Depth 200mm
Data Output RS232 / Printer
Hardness Conversion HR, HV, HK etc.
Power Supply AC220V/50Hz or 110V/60Hz
Dimensions 600 × 300 × 1000mm
Packing Dimensions 820 × 520 × 1220mm
Gross / Net Weight 205kg / 165kg
Standards ISO 6506, ASTM E10-12, JIS Z2243, GB/T231

Accuracy of Brinell Hardness Testing

Hardness Range Maximum Tolerance Repetition
HBW ≤ 125 ±3.0 ≤3.0
125 < HBW ≤ 225 ±2.5 ≤2.5
HBW > 225 ±2.0 ≤2.0

Standard Accessories

  • Instrument Main Body
  • 20X Microscope
  • Ø10mm Ball Indenter
  • Ø5mm Ball Indenter
  • Ø2.5mm Ball Indenter
  • HBW/3000/10 Hardness Block
  • HBW/1000/10 Hardness Block
  • Ø230mm Flat Anvil
  • Power Cable
  • Accessories Box
  • Anti-Dust Cover
  • Instrument Manual
  • Qualified Certificate

Industries Used In

  • Metallurgy
  • Foundries
  • Forging operations
  • Steel manufacturing
  • Non-ferrous metal testing
  • Industrial laboratories
  • Universities and technical institutes
  • Research and development laboratories
  • Manufacturing quality control
  • Material testing facilities

Alternative Names

  • Automatic Brinell Hardness Tester
  • Digital Brinell Hardness Tester
  • Closed-Loop Brinell Hardness Tester
  • Electronic Brinell Hardness Tester
  • Industrial Brinell Hardness Machine
  • HBW Hardness Tester
  • Brinell Testing System
  • Laboratory Brinell Hardness Tester
Downloads
Compare the Brinell Range

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
